| MOQ: | 1 set/part |
| Standard Packaging: | upon request |
| Delivery Period: | 5-30 work days |
| Payment Method: | T/T |

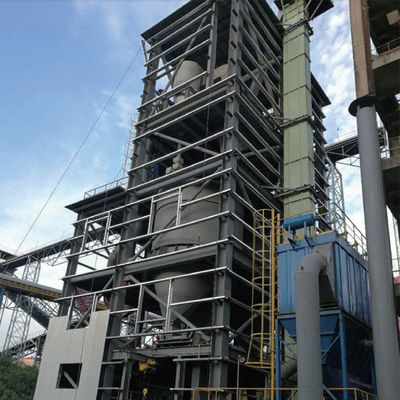

SSF series high-quality mechanism sand making system adopts dry production process and floor layout. The main building covers a small area and is mainly composed of raw materials, sand making, powder seperater, finished products, dust removal, Stone powder storage and electrical control. Sand making system is the core part of the whole production system, The raw materials are crushed, shaped, screened, humidified, and stirred in the system
The main building as a whole can be packaged according to customer reguirements, not affected by the weather, all-weather production, and at the same time play a dust and noise reduction effect
Technical Data of SSF Series Building-like Sand-maker
| Model | SSF60 | SSF100 | SSF150 | SSF200 | |
| Project | Unit | ||||
| Feed size | mm | ≤40 | |||
Moisture content | ≤3% | ||||
| Clay content | ≤1% | ||||
Material | Unweathered soft or hard rock(80-300Mpa) | ||||
| Capacity | t/h | 40-80 | 80-120 | 120-160 | 160-240 |
Fineness modulus | 2.3-3.0可调Adustable | ||||
| Powder content | 5-15% | ||||
Fraction of elongated flake | ≤5% | ||||
Dust control | Emissions of atmospheric pollutants are lower than the GB16279 comprehensive emission standard | ||||
Control box | Computer central control system | ||||
| Power | kw | ≈317 | ≈600 | ≈1260 | ≈1464 |
Technical Data of SGF Series Building-like Sand-and-gravel maker
| Model | SGF150 | SGF250 | SGF350 | SGF500 | |||
| Project | Unit | ||||||
| Feed size | mm | ≤600 | |||||
Mvoisture content | ≤% | ||||||
| Clay content | ≤1% | ||||||
| Material | Unweathered soft or hard rock(80-300Mpa) | ||||||
| Max sand-making capacity | t/h | 40-80 | 80-120 | 120-160 | 160-240 | ||
| Max gravel capacity | t/h | 70-110 | 130-280 | 170-400 | 260-600 | ||
Fineness modulus | 2.3-3.0Adjustable | ||||||
Powder content | 5-15% | ||||||
Fraction of elongated flake | ≤5% | ||||||
Dust control | Emissions of atmospheric pollutants are lower than the GB16279 comprehensive emission standard | ||||||
| Control box | Computer central control system | ||||||
Power | kw ≈510 ≈880 ≈1620 ≈1924 | ||||||
Note: the above capacity is based on limestone and input size 0-10mm. capacities are relative to physical character and type of
feeding, feeding size and composition and so on.
|
|
| MOQ: | 1 set/part |
| Standard Packaging: | upon request |
| Delivery Period: | 5-30 work days |
| Payment Method: | T/T |
SSF series high-quality mechanism sand making system adopts dry production process and floor layout. The main building covers a small area and is mainly composed of raw materials, sand making, powder seperater, finished products, dust removal, Stone powder storage and electrical control. Sand making system is the core part of the whole production system, The raw materials are crushed, shaped, screened, humidified, and stirred in the system
The main building as a whole can be packaged according to customer reguirements, not affected by the weather, all-weather production, and at the same time play a dust and noise reduction effect
Technical Data of SSF Series Building-like Sand-maker
| Model | SSF60 | SSF100 | SSF150 | SSF200 | |
| Project | Unit | ||||
| Feed size | mm | ≤40 | |||
Moisture content | ≤3% | ||||
| Clay content | ≤1% | ||||
Material | Unweathered soft or hard rock(80-300Mpa) | ||||
| Capacity | t/h | 40-80 | 80-120 | 120-160 | 160-240 |
Fineness modulus | 2.3-3.0可调Adustable | ||||
| Powder content | 5-15% | ||||
Fraction of elongated flake | ≤5% | ||||
Dust control | Emissions of atmospheric pollutants are lower than the GB16279 comprehensive emission standard | ||||
Control box | Computer central control system | ||||
| Power | kw | ≈317 | ≈600 | ≈1260 | ≈1464 |
Technical Data of SGF Series Building-like Sand-and-gravel maker
| Model | SGF150 | SGF250 | SGF350 | SGF500 | |||
| Project | Unit | ||||||
| Feed size | mm | ≤600 | |||||
Mvoisture content | ≤% | ||||||
| Clay content | ≤1% | ||||||
| Material | Unweathered soft or hard rock(80-300Mpa) | ||||||
| Max sand-making capacity | t/h | 40-80 | 80-120 | 120-160 | 160-240 | ||
| Max gravel capacity | t/h | 70-110 | 130-280 | 170-400 | 260-600 | ||
Fineness modulus | 2.3-3.0Adjustable | ||||||
Powder content | 5-15% | ||||||
Fraction of elongated flake | ≤5% | ||||||
Dust control | Emissions of atmospheric pollutants are lower than the GB16279 comprehensive emission standard | ||||||
| Control box | Computer central control system | ||||||
Power | kw ≈510 ≈880 ≈1620 ≈1924 | ||||||
Note: the above capacity is based on limestone and input size 0-10mm. capacities are relative to physical character and type of
feeding, feeding size and composition and so on.
