| MOQ: | 1 set/part |
| Standard Packaging: | upon request |
| Delivery Period: | 5-30 work days |
| Payment Method: | T/T |

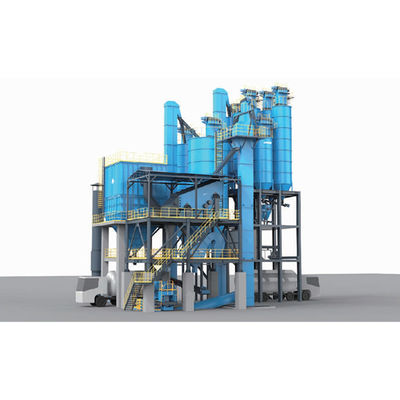

SRM series sand making and ready-mixed mortar two-in-one system has strong applicability.The sand making and dry mixed mortar are both of tower structure,with compact layout,smooth production process,small footprint,and relatively low energy consumption so that it is energy saving and environmental protection.
| Model | SRM100 | |
| Sand making production line | ||
| Main equipment | Model | TechnicalData |
| Feeding belt | B650 | Conveying capacity:80-100t/h |
| Sand Maker | VC743 | Throughpu:350-400t/h |
| Lifter | NSE300 | Lifting capacity:350-400t/h |
| Probability Screening | 3GLS2455 | Throughpu:350-400t/h |
| Centralized dust collector | SMCC75-9 | Air volume:60000 m³/h; Filter area:1240m |
| Powder Separator | CPG1000 | Throughpu:80-100t/h |
| Stone powder bin | Volume:150T | |
| Power | 698 kW | |
| Mortar line | ||
| Main equipment | Model | Technical Data |
| Dry sand primary lifter | NE100 | Lfting capacity:150t/h |
| Dry sand secondary lifter | NE100 | Lifting capacity:150t/h |
| Mixer | WSZ | Throughpu:60-80t/h |
| Sand bin | Total Volume:800T | |
| Powder bin | Total Volume:300m³ | |
| Main steel structure building | Two story concrete structure, three and four story steel structure form | |
| Packaging Machine | One set | |
| Power | 185 kW | |
The above data is for reference only, please contact our engineers for equipment selection for specific projects.
|
|
| MOQ: | 1 set/part |
| Standard Packaging: | upon request |
| Delivery Period: | 5-30 work days |
| Payment Method: | T/T |
SRM series sand making and ready-mixed mortar two-in-one system has strong applicability.The sand making and dry mixed mortar are both of tower structure,with compact layout,smooth production process,small footprint,and relatively low energy consumption so that it is energy saving and environmental protection.
| Model | SRM100 | |
| Sand making production line | ||
| Main equipment | Model | TechnicalData |
| Feeding belt | B650 | Conveying capacity:80-100t/h |
| Sand Maker | VC743 | Throughpu:350-400t/h |
| Lifter | NSE300 | Lifting capacity:350-400t/h |
| Probability Screening | 3GLS2455 | Throughpu:350-400t/h |
| Centralized dust collector | SMCC75-9 | Air volume:60000 m³/h; Filter area:1240m |
| Powder Separator | CPG1000 | Throughpu:80-100t/h |
| Stone powder bin | Volume:150T | |
| Power | 698 kW | |
| Mortar line | ||
| Main equipment | Model | Technical Data |
| Dry sand primary lifter | NE100 | Lfting capacity:150t/h |
| Dry sand secondary lifter | NE100 | Lifting capacity:150t/h |
| Mixer | WSZ | Throughpu:60-80t/h |
| Sand bin | Total Volume:800T | |
| Powder bin | Total Volume:300m³ | |
| Main steel structure building | Two story concrete structure, three and four story steel structure form | |
| Packaging Machine | One set | |
| Power | 185 kW | |
The above data is for reference only, please contact our engineers for equipment selection for specific projects.
