| MOQ: | 1 set |
| Price: | 3500-5000 USD/t |
| Standard Packaging: | Steel belt bundle up |
| Delivery Period: | 25-30 work days |
| Payment Method: | T/T |
| Supply Capacity: | 1000 tons/month |

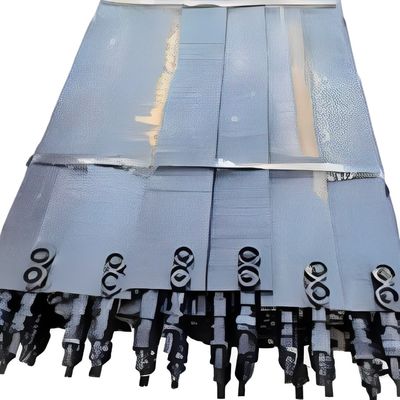

In the production of wear-resistant composite steel plate,the base material is ordinary medium and low-carbon steel plate with good comprehensive performance, and the process adopts open arc self-protection surfacing welding process; the equipment adopts the most advanced four gun full automatic welding machine composed of original imported welding power supply, and completes the base plate multiple surfacing through multi head welding gun and computer program control; the domestic well-known brand flux cored wire is selected to ensure the excellent performance of the product.
Product Specification and Model Introduction
| Product name | C Ci Si Mn | Other ( H R C ) | ||||
| ZP50 | 2.5-3.8 | 20.0-25.0 | 0.50-1.50 | 0.50-1.50 | ≥50 | |
| ZP55 | 3.0-4.5 | 20.0-25.0 | 0.50-1.50 | 0.50-150 | Mo0.5-1.0 | ≥55 |
| ZP60 | 3.5-4.8 | 20.0-25.0 | 0.50-1.50 | 0.50-1.50 | Mo 0.5-1.0 | ≥60 |
| ZP65 | 4.5-5.5 | 18.0-23.0 | 0.50-1.50 | 0.50-1.50 | Mo1.5-2.0 | ≥65 |
| Product name Specifications Minimum curvature radius | |||||
| Base material | Wear layer | Total thickness | Size(Height×Width) | ||
|
ZP50 ZP55 ZP60 |
6mm |
4mm | 10±1(mm) | 1400mm×3400mm | R≥150 |
| 5mm | 11±1(mm) | 1400mm×3400mm | R>150 | ||
| 6mm | 12±1(mm) | 1400mm×3400mm | R≥150 | ||
|
8mm |
4mm | 12±1(mm) | 1400mm×3400mm | R≥150 | |
| 5mm | 13±1(mm) | 1400mm×3400mm | R>150 | ||
| 6mm | 14±1(mm) | 1400mm×3400mm | R≥150 | ||
|
ZP55 ZP60 ZP65 |
10mm |
4mm | 14±1(mm) | 1400mm×3400mm | R≥150 |
| 5mm | 15±1(mm) | 1400mm×3400mm | R≥150 | ||
| 6mm | 16±1(mm) | 1400mm×3400mm | R≥150 | ||
| 8mm | 18±1(mm) | 1400mm×3400mm | R≥300 | ||
|
ZP60 ZP65 |
12mm |
4mm | 16±1(mm) | 1400mm×3400mm | R>150 |
| 5mm | 17±1(mm) | 1400mm×3400mm | R≥150 | ||
| 6mm | 18±1(mm) | 1400mm×3400mm | R>150 | ||
| 8mm | 20±1(mm) | 1400mm×3400mm | R>300 | ||
|
|
