| MOQ: | 1 set |
| Standard Packaging: | upon request |
| Delivery Period: | 15-30 work days |
| Payment Method: | T/T |

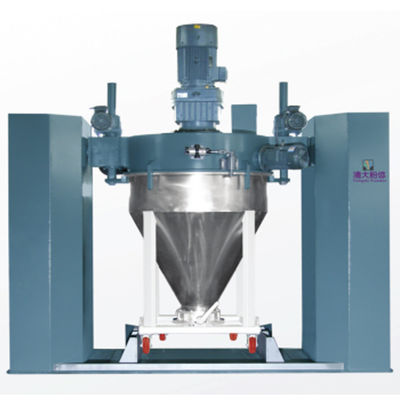

The MIC series mixer is a hopper circulation movable mixer, and the entire work is automatically controlled by a programmable logic controller (PLC). After the raw material hopper is pushed to the workstation, the control system automatically lifts it and combines and locks it with the stirring head. Then the hopper and the stirring head flip at different angles together, and the raw materials are mixed during the flipping process.
Main features:
●The hopper is circulation movable, with high production efficiency.
●Mechanical stirring while the hopper is flipped.
●Automatic control of hopper positioning, lifting, locking and loosening.
●Easy to clean and maintain, and convenient to operate.
●Fully automatic PLC control of the mixing process.
●Uniform mixing and no solidified particles.
●Safe operation and high output.
| Specification | |||||
| Model | Volume(L) | Main motor(kw) | Minor motor(kw) | Tilt motor(kw) | PLC control |
| MIC-300 | 300 | 11 | / | 0.75 | yes |
| MIC-600 | 600 | 15-18.5 | 5.5 | 1.1 | yes |
| MIC-1000 | 1000 | 22-30 | 7.5 | 1.5 | yes |
| MIC-1500 | 1500 | 30-37 | 11 | 2.2 | yes |
| MIC-2000 | 2000 | 37-45 | 15 | 3.0 | yes |
|
|
| MOQ: | 1 set |
| Standard Packaging: | upon request |
| Delivery Period: | 15-30 work days |
| Payment Method: | T/T |
The MIC series mixer is a hopper circulation movable mixer, and the entire work is automatically controlled by a programmable logic controller (PLC). After the raw material hopper is pushed to the workstation, the control system automatically lifts it and combines and locks it with the stirring head. Then the hopper and the stirring head flip at different angles together, and the raw materials are mixed during the flipping process.
Main features:
●The hopper is circulation movable, with high production efficiency.
●Mechanical stirring while the hopper is flipped.
●Automatic control of hopper positioning, lifting, locking and loosening.
●Easy to clean and maintain, and convenient to operate.
●Fully automatic PLC control of the mixing process.
●Uniform mixing and no solidified particles.
●Safe operation and high output.
| Specification | |||||
| Model | Volume(L) | Main motor(kw) | Minor motor(kw) | Tilt motor(kw) | PLC control |
| MIC-300 | 300 | 11 | / | 0.75 | yes |
| MIC-600 | 600 | 15-18.5 | 5.5 | 1.1 | yes |
| MIC-1000 | 1000 | 22-30 | 7.5 | 1.5 | yes |
| MIC-1500 | 1500 | 30-37 | 11 | 2.2 | yes |
| MIC-2000 | 2000 | 37-45 | 15 | 3.0 | yes |
