| MOQ: | 1 set/part |
| Standard Packaging: | upon request |
| Delivery Period: | 5-30 work days |
| Payment Method: | T/T |

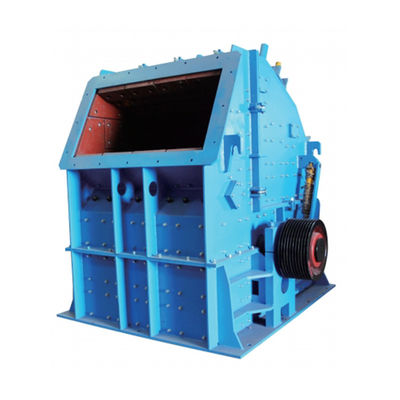

CH Series lmpact Crusher Secondary
CHS series fine impact crusher is mainly used for the secondary and tertiary crushing of all rocks and ores.It has the characteristics of high yield, stable performance, good particle shape, and low over crushing rate, etc.
It absorbs all the advantages of impact crushers and adopts large inclination angle design to improve the rate of material entering the rotor. Optimized structure of the crushing cavity and the added reshaping cavity improve the particle shape.
CHS Technical Data
| Model | Max Feed Edge(mm) | Capacity(t/h) | Motor Power(kw) |
Weight (Excluding Motor)(t) |
| CHS4528(A) | 250 | 40-70 | 37-55 | 1.8 |
| CHS4539IA) | 00 | 70- 00 | 55-75 | 4.4 |
| CHS4939(A) | 350 | 00 180 | 110-132 | 14.696 |
| CHS4955(A | 50 | 150 290 | 132-200 | 17.43 |
| CHS5159Ⅱ(A | 400 | 80-350 | 200-250 | 21.05 |
| CHS5179|A0 | 300 | 200-400 | 250-315 | 23.23 |
| CHS5559IA | 450 | 250-450 | 250-315 | 27.046 |
| CHS5598(A) | 350 | 300-550 | 400-500 | 39.1 |
| CHS5979[A] | 500 | 400-440 | 36.7 | |
| CHS59118A | 400 | 350-700 | 500-630 | 46.85 |
| CHS6379(A) | 600 | 440-560 | 56.4 | |
| CHS631181A) | 450 | 410-780 | 560-710 | 55.4 |
| CHS7179(A) | 600 | c00.85 | 830 | 84.1 |
| CHS711381A) | 500 | 700-1100 | 800-900 | 111.45 |
Note: The capacity is total tons per hour passing through crusher at open circuit when crushing medium and below hardness materialand bulk density with 1.6x10`kg/m". Capacities are relative to physical character and type of feeding, feeding size and composition and so on.
|
|
| MOQ: | 1 set/part |
| Standard Packaging: | upon request |
| Delivery Period: | 5-30 work days |
| Payment Method: | T/T |
CH Series lmpact Crusher Secondary
CHS series fine impact crusher is mainly used for the secondary and tertiary crushing of all rocks and ores.It has the characteristics of high yield, stable performance, good particle shape, and low over crushing rate, etc.
It absorbs all the advantages of impact crushers and adopts large inclination angle design to improve the rate of material entering the rotor. Optimized structure of the crushing cavity and the added reshaping cavity improve the particle shape.
CHS Technical Data
| Model | Max Feed Edge(mm) | Capacity(t/h) | Motor Power(kw) |
Weight (Excluding Motor)(t) |
| CHS4528(A) | 250 | 40-70 | 37-55 | 1.8 |
| CHS4539IA) | 00 | 70- 00 | 55-75 | 4.4 |
| CHS4939(A) | 350 | 00 180 | 110-132 | 14.696 |
| CHS4955(A | 50 | 150 290 | 132-200 | 17.43 |
| CHS5159Ⅱ(A | 400 | 80-350 | 200-250 | 21.05 |
| CHS5179|A0 | 300 | 200-400 | 250-315 | 23.23 |
| CHS5559IA | 450 | 250-450 | 250-315 | 27.046 |
| CHS5598(A) | 350 | 300-550 | 400-500 | 39.1 |
| CHS5979[A] | 500 | 400-440 | 36.7 | |
| CHS59118A | 400 | 350-700 | 500-630 | 46.85 |
| CHS6379(A) | 600 | 440-560 | 56.4 | |
| CHS631181A) | 450 | 410-780 | 560-710 | 55.4 |
| CHS7179(A) | 600 | c00.85 | 830 | 84.1 |
| CHS711381A) | 500 | 700-1100 | 800-900 | 111.45 |
Note: The capacity is total tons per hour passing through crusher at open circuit when crushing medium and below hardness materialand bulk density with 1.6x10`kg/m". Capacities are relative to physical character and type of feeding, feeding size and composition and so on.
