| MOQ: | 1 set/part |
| Standard Packaging: | upon request |
| Delivery Period: | 5-30 work days |
| Payment Method: | T/T |

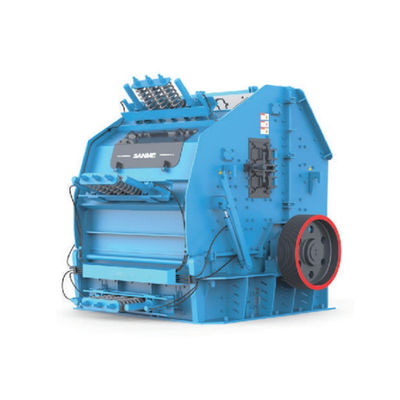

E-HSl Series impact Crusher (Medium and Fine Crushing
The E-HSI series impact crusher adopts fine crushing cavity,scientific rotor and unique plate hammer design for higher output,yield,and equipment reliability with easier rmaintenance.
Applicable materials:Medium and fine crushing of soft and medium-hard rocks
Application areas:aggregate processing,raw material crushing in the cement industry,construction waste recycling etc.
Technical Data
| Model |
Max Feeding Edge(mm) |
Throughput (t/h) |
Motor Power (kW) |
Dimension(L×W×H)(mm) (the biggestsize) |
| E-HSI127 | 180 | 40-120 | 55-110 | 2261*1664*1865 |
| E-HSI139 | 180 | 70-150 | 75-160 | 2295*2020*1865 |
| E-HSI153 | 180 | 100-200 | 90-200 | 2330*2450*1865 |
| E-HSI255 | 200 | 130-250 | 160-250 | 3000*2800*2850 |
| E-HSI359 | 250 | 180-300 | 220-315 | 3210*3030*2720 |
| E-HSI379 | 300 | 240-460 | 250-355 | 3210*3530*2720 |
| E-HSI459 | 400 | 250-450 | 250-355 | 3340*3070*2780 |
| E-HSI498 | 400 | 330-560 | 450-500 | 3340*4070*2780 |
| E-HSI579 | 450 | 320-550 | 400-500 | 3420*3670*2850 |
| E-HSI598 | 450 | 400-685 | 500-630 | 3420*4170*2850 |
| E-HSI5118 | 450 | 480-800 | 560-710 | 3420*4670*2850 |
| E-HSI679 | 500 | 400-720 | 500-630 | 3530*4350*3080 |
| E-HSI6118 | 500 | 600-1000 | 800-1000 | 3530*5215*3080 |
| E-HSI779 | 500 | 550-950 | 630-900 | 3950*4410*3822 |
| E-HSI798 | 500 | 700-1400 | 800-1100 | 3950*4880*3822 |
| E-HSI7138 | 550 | 900-1700 | 1100-1400 | 3950*5830*3822 |
Grinding cavity is standard.The crusher capacities listed are based on instantaneous sampling of medium hardness rocks.The above data is for reference only,please contact our engineers for equipment selection for specific projects.
|
|
| MOQ: | 1 set/part |
| Standard Packaging: | upon request |
| Delivery Period: | 5-30 work days |
| Payment Method: | T/T |
E-HSl Series impact Crusher (Medium and Fine Crushing
The E-HSI series impact crusher adopts fine crushing cavity,scientific rotor and unique plate hammer design for higher output,yield,and equipment reliability with easier rmaintenance.
Applicable materials:Medium and fine crushing of soft and medium-hard rocks
Application areas:aggregate processing,raw material crushing in the cement industry,construction waste recycling etc.
Technical Data
| Model |
Max Feeding Edge(mm) |
Throughput (t/h) |
Motor Power (kW) |
Dimension(L×W×H)(mm) (the biggestsize) |
| E-HSI127 | 180 | 40-120 | 55-110 | 2261*1664*1865 |
| E-HSI139 | 180 | 70-150 | 75-160 | 2295*2020*1865 |
| E-HSI153 | 180 | 100-200 | 90-200 | 2330*2450*1865 |
| E-HSI255 | 200 | 130-250 | 160-250 | 3000*2800*2850 |
| E-HSI359 | 250 | 180-300 | 220-315 | 3210*3030*2720 |
| E-HSI379 | 300 | 240-460 | 250-355 | 3210*3530*2720 |
| E-HSI459 | 400 | 250-450 | 250-355 | 3340*3070*2780 |
| E-HSI498 | 400 | 330-560 | 450-500 | 3340*4070*2780 |
| E-HSI579 | 450 | 320-550 | 400-500 | 3420*3670*2850 |
| E-HSI598 | 450 | 400-685 | 500-630 | 3420*4170*2850 |
| E-HSI5118 | 450 | 480-800 | 560-710 | 3420*4670*2850 |
| E-HSI679 | 500 | 400-720 | 500-630 | 3530*4350*3080 |
| E-HSI6118 | 500 | 600-1000 | 800-1000 | 3530*5215*3080 |
| E-HSI779 | 500 | 550-950 | 630-900 | 3950*4410*3822 |
| E-HSI798 | 500 | 700-1400 | 800-1100 | 3950*4880*3822 |
| E-HSI7138 | 550 | 900-1700 | 1100-1400 | 3950*5830*3822 |
Grinding cavity is standard.The crusher capacities listed are based on instantaneous sampling of medium hardness rocks.The above data is for reference only,please contact our engineers for equipment selection for specific projects.
