Introduction

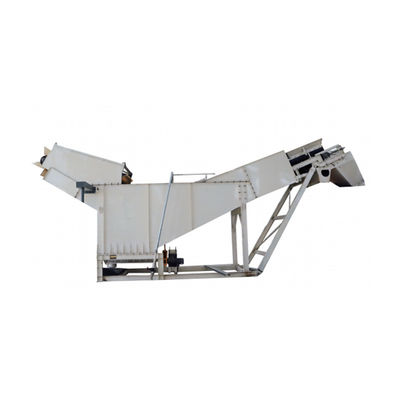

BHF series Belt flotation machine uses water flotation technology to process the crushed construction waste materials and separate the light materials (such as paper, plastics, wood, cloth strips.etc.) from the aggregates.
Features
Modular design, easy installation, and convenient maintenance.
Fit the unstable material flow.
Save the installation space on site.
Enhances the drainage effect of the material and saves water.
Ensures no material be spilled .
The discharge outlet is convenient for removing sediment
Technical Data
| Model |
Linear Velocity(m/s) |
Capacity(t/h) |
Water Consumption (m³/h) |
Motor Power(kw) |
Weight(kg) |
||||
| Belt Conveyor | Belit Conveyor with Scraper to Remove lmpurity | Belt Conveyor |
Belit Conveyor with Scraper to Remove lmpurity |
Rotary Sweeper |
Spral reamer to discharge sludge | ||||
| BHF10 | 0.3～0.8 | 0.25 | 90-150 | 10-18 | 7.5 | 1.5 | 0.75 | 5.5 | 8236 |
| BHF14 | 0.3～0.8 | 0.25 | 180-300 | 20-35 | 11 | 1.5 | 0.75 | 5.5 | 11087 |
| BHF16 | 0.3～0.8 | 0.25 | 245-400 | 30-50 | 15 | 1.5 | 0.75 | 5.5 | 12164 |
Note: Capacities are relative to physical character and type of feeding, feeding size and composition and so on.
|
|
