| MOQ: | 1 set |
| Price: | 30000--300000 USD per set |
| Standard Packaging: | upon requirement |
| Delivery Period: | 25--50 working days |
| Supply Capacity: | 10 sets per month |
(一)Technical Parameter
1,Design basis
Material Name: Calcium Carbonate Solution
Feed temperature: room temperature
Solid content: 10%--70%
Environmental air: 20℃,70%RH
Atmospheric pressure: 760mmH
Power supply:380V,50HZ
2,Equipment characteristics

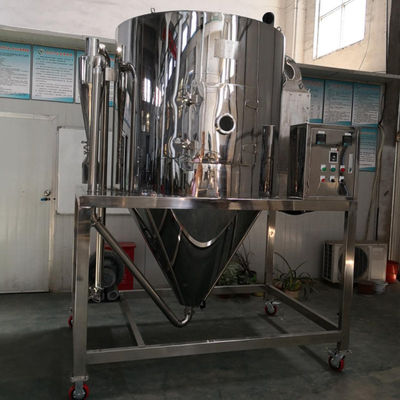

Spray mode: centrifugal pulverizing atomizing disk
Spray type: parallel flow
Feed type: Feeding pump
Heating method: natural gas/electricity
Product collection method: cyclone+dust collector
3,Operating Data
Feed quantity: 55Kg/h--200Kg/h
Water evaporation rate: 50Kg/h--150Kg/h
Product output: 5Kg/h
Intake air temperature : ～350℃
Exhaust temperature: ～120℃
4,Product Features
Product temperature: adjustable
Ideal particle size: powder
| No. | Name | Model | Material | Qun | Remark | ||
| 1 | Feeding atomization system | ||||||
| Feed pump | 0.5Kw--5.5Kw,--300Kg/h | Sus304 | 1 | ||||
| Feed pipeline | 配套 | Silicone hose | 1 | ||||
| Centrifugal atomizer | 2.2Kw--7.5Kw,--400Kg/h | Sets | 1 | ||||
| 2 | Air heating system | ||||||
| Natural gas hot blast stove | 10万大卡 | 1 | |||||
| Fan | DF-2,1.1Kw--11Kw | 碳钢 | 1 | ||||
| 3 | Drying tower system | ||||||
| Hot air distributor | 尼鲁对数螺旋型 | 1 | |||||
| Drier chamber | 直筒体Æ2*1.83m(直段) 锥体夹角 55° | 1 | |||||
| observation door | 1 | ||||||
| Lighting components | 1 | ||||||
| 4 | Exhaust System | ||||||
| Exhaust duct | SUS304 | 1 | |||||
| Cyclone collector | SUS304 | 1 | |||||
| Rotary discharge valve | SUS304 | 1 | |||||
| bag-type dust collector | Bag | 1 | |||||
| Fan | 4Kw--11Kw | 1 | |||||
| 5 | Electrical control system | ||||||
| 5.1 | Power equipment (30Kw) | ||||||
| 5.1.1 | Feed pump 0.5--5.5Kw | ||||||
| 5.1.2 | Induced draft fan 4--11Kw | ||||||
| 5.1.3 | Blower1.1--4Kw | ||||||
| 5.1.4 | High speed atomizer 2.2--7.5Kw | ||||||
| 5.2 | On site electrical components | ||||||
| 5.2.1 | Hot air temperature thermistor | 1 | |||||
| 5.2.2 | Air outlet temperature thermistor | 1 | |||||
| 5.2.3 | Pulse valve of bag filter | 1 | |||||
| 5.2.4 | Pulse controller for bag filter | 1 | |||||
| 5.3 | Control cabinet | ||||||
| 5.3.1 | Electrical control cabinet | 1 | |||||
| 5.3.2 | Hot air temperature controller | 1 | |||||
| 5.3.3 | Air outlet temperature controller | 1 | |||||
| 5.3.4 | Drying tower pressure gauge | 1 | |||||
| 5.4 | Frequency converter | ||||||
| 5.4.1 | Atomizer frequency converter2.2--7.5Kw | 1 | |||||
| 5.4.2 | Induced draft fan frequency converter4--11Kw | 1 | |||||
***Multiple specifications to choose from.
***Can be customized according to customer requirements
|
|
