| MOQ: | 1 set |
| Standard Packaging: | upon request |
| Delivery Period: | 5-30 work days |
| Payment Method: | T/T |
Introduction

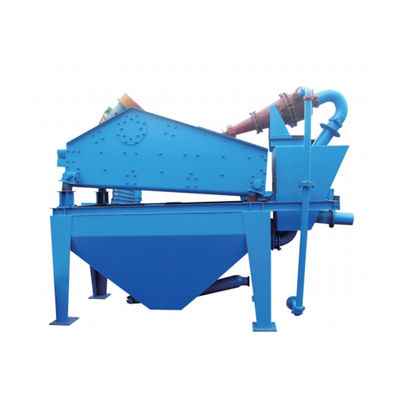

The current sand production lines mostly use wet production processes. No matter what form of sand washing machine is used, its disadvantage is severe loss of fine sand (<0.16mm). Some production equipment even loses more than 20% of fine sand. This not only results in a loss of production, but also seriously affects the particle composition of sand. Causing unreasonable particle base configuration and reducing product quality. Excessive sand washing discharge also causes environmental pollution.In order to solve the above questions, we research and manufacturethe SS series sand collecting system. which is designed on the basis of absorbing the world advanced technology. They are utilized widely in aggregate processing system, the processing system of glass raw material,
Technical Data
| Model | Pump | Cyclone(mm) | Vibrating Screen |
Capacity(m³h) |
Weight(kg) |
|||
| Power(kw) |
Size(inck) |
Model |
Deck Size(m²) |
Power(kw) |
||||
| SS-06-300 | 7.5 | 2" | 300 | 0.6×1.5 | 0.9 | 2×0.75 | 40-60 | 3700 |
| SS-08-300 | 15 | 2.5" | 300 | 0.8×2.25 | 1.8 | 2×1.5 | 40-100 | 4200 |
| SS-10-350 | 18.5 | 3" | 350 | 1.0×2.25 | 2.25 | 2×1.5 | 70-140 | 4600 |
| SS-12-550 | 37 | 5" | 550 | 1.2×3.0 | 3.6 | 2×2.2 | 100-260 | 7100 |
| SS-14-750 | 45 | 6" | 750 | 1.4×3.0 | 4.2 | 2×3 | 180-343 | 8310 |
| SS-14-750Ⅱ | 55 | 6" | 750 | 1.4×3.75 | 5.25 | 2×3.7 | 230-420 | 8950 |
| SS-16-950 | 55 | 8" | 950 | 1.6×3.75 | 5.25 | 2×5.5 | 250-500 | 14300 |
| SS-16-2×550 | 55 | 10” | 2×550 | 1.6×3.75 | 6.00 | 2×5.5 | 300-500 | 16700 |
| SS-18-2x750 | 75 | 10” | 2×750 | 1.8×3.75 | 6.75 | 2×5.5 | 350-800 | 19680 |
Note: Capacities are relative to physical character and type of feeding, feeding size and composition and so on.
|
|
| MOQ: | 1 set |
| Standard Packaging: | upon request |
| Delivery Period: | 5-30 work days |
| Payment Method: | T/T |
Introduction
The current sand production lines mostly use wet production processes. No matter what form of sand washing machine is used, its disadvantage is severe loss of fine sand (<0.16mm). Some production equipment even loses more than 20% of fine sand. This not only results in a loss of production, but also seriously affects the particle composition of sand. Causing unreasonable particle base configuration and reducing product quality. Excessive sand washing discharge also causes environmental pollution.In order to solve the above questions, we research and manufacturethe SS series sand collecting system. which is designed on the basis of absorbing the world advanced technology. They are utilized widely in aggregate processing system, the processing system of glass raw material,
Technical Data
| Model | Pump | Cyclone(mm) | Vibrating Screen |
Capacity(m³h) |
Weight(kg) |
|||
| Power(kw) |
Size(inck) |
Model |
Deck Size(m²) |
Power(kw) |
||||
| SS-06-300 | 7.5 | 2" | 300 | 0.6×1.5 | 0.9 | 2×0.75 | 40-60 | 3700 |
| SS-08-300 | 15 | 2.5" | 300 | 0.8×2.25 | 1.8 | 2×1.5 | 40-100 | 4200 |
| SS-10-350 | 18.5 | 3" | 350 | 1.0×2.25 | 2.25 | 2×1.5 | 70-140 | 4600 |
| SS-12-550 | 37 | 5" | 550 | 1.2×3.0 | 3.6 | 2×2.2 | 100-260 | 7100 |
| SS-14-750 | 45 | 6" | 750 | 1.4×3.0 | 4.2 | 2×3 | 180-343 | 8310 |
| SS-14-750Ⅱ | 55 | 6" | 750 | 1.4×3.75 | 5.25 | 2×3.7 | 230-420 | 8950 |
| SS-16-950 | 55 | 8" | 950 | 1.6×3.75 | 5.25 | 2×5.5 | 250-500 | 14300 |
| SS-16-2×550 | 55 | 10” | 2×550 | 1.6×3.75 | 6.00 | 2×5.5 | 300-500 | 16700 |
| SS-18-2x750 | 75 | 10” | 2×750 | 1.8×3.75 | 6.75 | 2×5.5 | 350-800 | 19680 |
Note: Capacities are relative to physical character and type of feeding, feeding size and composition and so on.
