| MOQ: | 1 set/part |
| Standard Packaging: | upon request |
| Delivery Period: | 5-30 work days |
| Payment Method: | T/T |

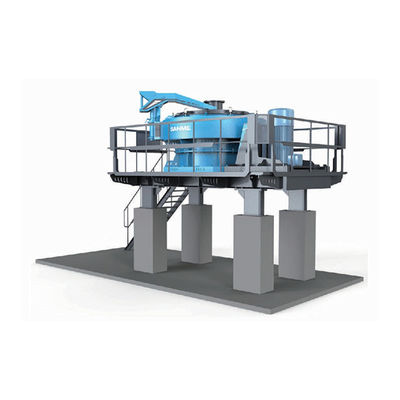

E-VSI series Vertical Shaft Impact Crusher is a new product by absorbing Chinese and German advanced design concepts as well as integrating market demand and on-site experience.It has the characteristics of higher percentage of sand,lower operating cost,less wearing parts,etc.It also has the functions of sand making,shaping,and discharging both sand and gravel.
Features and Benefits
Single motor driving, lower power consumption.Simple structure, convenient installation & maintenance, lower operation cost.
High quality product shape-cubical, low percentage of flake shape product.
Technical Data
|
Model |
Feeding Size(mm) |
Speed of Rotor(r/min) |
Throughput (th) |
Motor Power (kW) |
Diameter of Impeller (mm) |
| E-VSI-110 | ≤30 | 1485 | 30-60 | 110 | 900 |
| E-VSI-160 | ≤30 | 1485 | 40-80 | 160 | 900 |
| E-VSI-200 | ≤40 | 1485 | 60-110 | 200 | 900 |
| E-VSI-250 | ≤40 | 1485 | 80-150 | 250 | 900 |
| E-VSI-280 | ≤50 | 1215 | 120-260 | 280 | 1100 |
| E-VSI-315 | ≤50 | 1215 | 150-300 | 315 | 1100 |
| E-VSI-355 | ≤60 | 1215 | 180-350 | 355 | 1100 |
| E-VSI-400 | ≤60 | 1215 | 220-400 | 400 | 1100 |
The crusher capacities listed are based on instantaneous sampling of medium hardness rocks.The above data is for reference only,please contact our engineers for equipmen selection for specific projects.
|
|
| MOQ: | 1 set/part |
| Standard Packaging: | upon request |
| Delivery Period: | 5-30 work days |
| Payment Method: | T/T |
E-VSI series Vertical Shaft Impact Crusher is a new product by absorbing Chinese and German advanced design concepts as well as integrating market demand and on-site experience.It has the characteristics of higher percentage of sand,lower operating cost,less wearing parts,etc.It also has the functions of sand making,shaping,and discharging both sand and gravel.
Features and Benefits
Single motor driving, lower power consumption.Simple structure, convenient installation & maintenance, lower operation cost.
High quality product shape-cubical, low percentage of flake shape product.
Technical Data
|
Model |
Feeding Size(mm) |
Speed of Rotor(r/min) |
Throughput (th) |
Motor Power (kW) |
Diameter of Impeller (mm) |
| E-VSI-110 | ≤30 | 1485 | 30-60 | 110 | 900 |
| E-VSI-160 | ≤30 | 1485 | 40-80 | 160 | 900 |
| E-VSI-200 | ≤40 | 1485 | 60-110 | 200 | 900 |
| E-VSI-250 | ≤40 | 1485 | 80-150 | 250 | 900 |
| E-VSI-280 | ≤50 | 1215 | 120-260 | 280 | 1100 |
| E-VSI-315 | ≤50 | 1215 | 150-300 | 315 | 1100 |
| E-VSI-355 | ≤60 | 1215 | 180-350 | 355 | 1100 |
| E-VSI-400 | ≤60 | 1215 | 220-400 | 400 | 1100 |
The crusher capacities listed are based on instantaneous sampling of medium hardness rocks.The above data is for reference only,please contact our engineers for equipmen selection for specific projects.
