| MOQ: | 1 set/part |
| Standard Packaging: | upon request |
| Delivery Period: | 5-30 work days |
| Payment Method: | T/T |

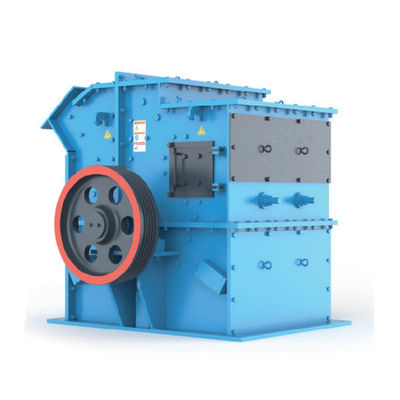

PCX Series High Efficient Hammer Fine Crusher,also be called as Impact High Efficiency Fine Crusher,is suitable for crushing limestone,marlstone,etc,of which the crushing compressive strength does not exceed 200 MPa.
Features and Benefits
Uper fine crushing:Reasonable multiple crushing chamber combination,new convenient double adjustment structure,the output size being smaller than 3mm can reach 85%,finished particle size is fine and uniform.
Super long life:Wear-out part adopts new excellent multielement high chromium alloy which ensure abrasive resistance and shock resistance of the liner plate.
Technical Data
| Model |
Max Feeding Size (mm) |
Average Discharging Size(mm) |
Capacity (t/h) |
MotorPower (kW) |
Dimension (mm) |
|
|
Cement Clinker |
Limestone |
|||||
| PCX-8040 | 80 | 3 | 15-20 | 20-25 | 37 | 1395x1506x1390 |
| PCX-8080 | 80 | 3 | 25-30 | 30-40 | 45 | 1395x1906x1390 |
| PCX-9080 | 100 | 3 | 40-45 | 45-50 | 55 | 1754x1906x1659 |
| PCX-9010 | 100 | 3 | 45-50 | 50-55 | 75 | 1754x2176x1659 |
| PCX-1010 | 150 | 3-5 | 50-60 | 60-70 | 90 | 2138x2590x2021 |
| PCX-1210 | 200 | 3-5 | 60-80 | 70-90 | 110 | 2524x2716x2325 |
| PCX-1212 | 200 | 3-5 | 60-100 | 70-110 | 132 | 2524x2866x2325 |
| PCX-1414 | 200 | 5-8 | 70-150 | 70-160 | 200 | 2550x3120x2670 |
| PCX-1616 | 200 | 5-8 | 100-210 | 110-260 | 250 | 2922x3564x2900 |
| PCX-1818 | 200 | 5-10 | 120-270 | 130-310 | 315 | 3121x3754x3150 |
The crusher capacities Iisted are based on instantaneous sampling of medium hardness rocks.The above data is for reference only,please contact our engineers for equipment selection for specific projects.
|
|
| MOQ: | 1 set/part |
| Standard Packaging: | upon request |
| Delivery Period: | 5-30 work days |
| Payment Method: | T/T |
PCX Series High Efficient Hammer Fine Crusher,also be called as Impact High Efficiency Fine Crusher,is suitable for crushing limestone,marlstone,etc,of which the crushing compressive strength does not exceed 200 MPa.
Features and Benefits
Uper fine crushing:Reasonable multiple crushing chamber combination,new convenient double adjustment structure,the output size being smaller than 3mm can reach 85%,finished particle size is fine and uniform.
Super long life:Wear-out part adopts new excellent multielement high chromium alloy which ensure abrasive resistance and shock resistance of the liner plate.
Technical Data
| Model |
Max Feeding Size (mm) |
Average Discharging Size(mm) |
Capacity (t/h) |
MotorPower (kW) |
Dimension (mm) |
|
|
Cement Clinker |
Limestone |
|||||
| PCX-8040 | 80 | 3 | 15-20 | 20-25 | 37 | 1395x1506x1390 |
| PCX-8080 | 80 | 3 | 25-30 | 30-40 | 45 | 1395x1906x1390 |
| PCX-9080 | 100 | 3 | 40-45 | 45-50 | 55 | 1754x1906x1659 |
| PCX-9010 | 100 | 3 | 45-50 | 50-55 | 75 | 1754x2176x1659 |
| PCX-1010 | 150 | 3-5 | 50-60 | 60-70 | 90 | 2138x2590x2021 |
| PCX-1210 | 200 | 3-5 | 60-80 | 70-90 | 110 | 2524x2716x2325 |
| PCX-1212 | 200 | 3-5 | 60-100 | 70-110 | 132 | 2524x2866x2325 |
| PCX-1414 | 200 | 5-8 | 70-150 | 70-160 | 200 | 2550x3120x2670 |
| PCX-1616 | 200 | 5-8 | 100-210 | 110-260 | 250 | 2922x3564x2900 |
| PCX-1818 | 200 | 5-10 | 120-270 | 130-310 | 315 | 3121x3754x3150 |
The crusher capacities Iisted are based on instantaneous sampling of medium hardness rocks.The above data is for reference only,please contact our engineers for equipment selection for specific projects.
