| MOQ: | 1 set |
| Standard Packaging: | upon request |
| Delivery Period: | 15-30 work days |
| Payment Method: | T/T |
Equipment Introduction:

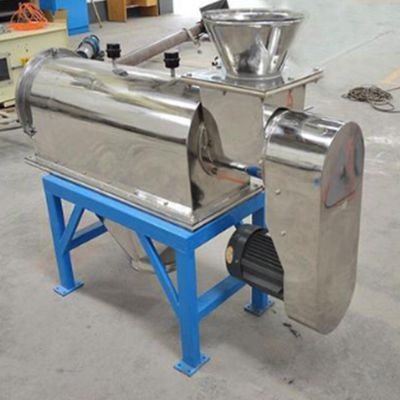

The airflow sieve is a device for high-precision screening of powder products. It can continuously screen powdery materials with a fineness range of 80-500 mesh very well, and the screen can be replaced at will. According to requirements, the material can be stainless steel or carbon steel. The product has the characteristics of high precision, continuity, high efficiency, large output, and no dust. It is widely used in chemical, pharmaceutical, food, papermaking, metallurgy, building materials, rubber, machinery and other industries.
Working Principle:
The airflow sieve equipment has a cylindrical screen. The material is mixed and dispersed with gas at the inlet through a screw conveyor, and then enters the screen cylinder. Through the screening function of the screen, the material is screened. The fine material is discharged from the discharge port at the lower end, and the coarse material is discharged from the coarse material port at the front end.
| Product Parameters | |||
| Device Model | Production Capacity | Screen mesh number | Motor power |
| RA-QLS-1885 | 60-800kg | 50目-500目 | 2.2kw |
| RA-QLS-30100 | 100-2000kg | 50目-500目 | 3kw-4Kw |
| RA-QLS-50130 | 300-4000kg | 50目-500目 | 5.5kw |
|
|
| MOQ: | 1 set |
| Standard Packaging: | upon request |
| Delivery Period: | 15-30 work days |
| Payment Method: | T/T |
Equipment Introduction:
The airflow sieve is a device for high-precision screening of powder products. It can continuously screen powdery materials with a fineness range of 80-500 mesh very well, and the screen can be replaced at will. According to requirements, the material can be stainless steel or carbon steel. The product has the characteristics of high precision, continuity, high efficiency, large output, and no dust. It is widely used in chemical, pharmaceutical, food, papermaking, metallurgy, building materials, rubber, machinery and other industries.
Working Principle:
The airflow sieve equipment has a cylindrical screen. The material is mixed and dispersed with gas at the inlet through a screw conveyor, and then enters the screen cylinder. Through the screening function of the screen, the material is screened. The fine material is discharged from the discharge port at the lower end, and the coarse material is discharged from the coarse material port at the front end.
| Product Parameters | |||
| Device Model | Production Capacity | Screen mesh number | Motor power |
| RA-QLS-1885 | 60-800kg | 50目-500目 | 2.2kw |
| RA-QLS-30100 | 100-2000kg | 50目-500目 | 3kw-4Kw |
| RA-QLS-50130 | 300-4000kg | 50目-500目 | 5.5kw |
