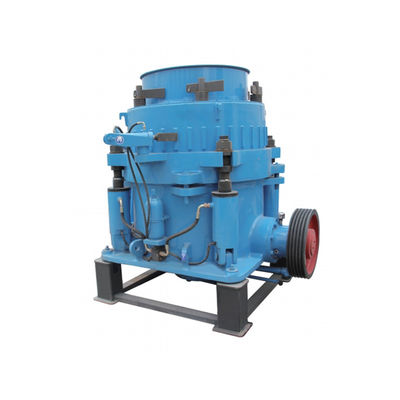

CCH Series Hydraulic Cone Crusher Environment Protection In Metallurgy Building Materials Chemical Industry
  • name

CCH Series Hydraulic Cone Crusher Environment Protection In Metallurgy Building Materials Chemical Industry

MOQ: 1 set/part
Standard Packaging: upon request
Delivery Period: 5-30 work days
Payment Method: T/T
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
HAOFENG
Advantage:
Less Investment, Simple Operation,energy-saving
Model:
Multiple Models Are Available
Feature:
Low Noise,compact,environment Protection
Minimum Order Quantity:
1 set/part
Packaging Details:
upon request
Delivery Time:
5-30 work days
Payment Terms:
T/T
Highlight:

metallurgy hydro cone crusher

,

metallurgy hydraulic cone crusher

,

building hydro cone crusher

Product Description

CCH series hydraulic cone crusher is a cone crusher developed by absorbing advanced crushing technology from around the world, with a world-class level. Widely used in metallurgy, building materials, chemical industry and other industries, Suitable for crushing various ores and rocks with medium to high hardness.

Strong crushing ability, high efficiency , high capacity.

Hydraulic system is reliable, provide safe and effective overload protection.

Multiple crushing chambers to meet the production requirements of a wide range of product particle sizes.

Adopting hydraulic adjustment and hydraulic cleaning chamber setting, greatly improves the degree of automation.
We can select hydraulic motor to adjust the discharge opening quickly and reduce the labor cost.



Technical Data

Standard-type Hydraulic Cone Crusher

Model Type of Cavity Max Feeding Size(mm) Discharge Range (mm) Motor Power(kw) Capacity(t/h)Open circuit,Closed discharge(mm) dstpt
    9 13 16 19 22 26 32 38 51 63 76 89
CCH639 C 60 22-32 75-90         120 130 150
M 130 13-26   65 85 100 120 130
F 50 9-19 40 60 80 90
CCH651 EC 260 26-51 185-200           250 290 340 395
C 220 19-51       182 209 236 279 334 365
M 150 16-38     125 140 165 220 275 330
F 115 13-31   115 133 156 176 192 226
CCH667 EC 315 38-63 250-280               555 649 766
C 230 26-63           366 430 468 629 657
M 205 22-52         266 299 348 393 451
F 180 16-38     188 212 234 267 305 337
COH684 EC 450 38-89 400               890 1179 1380 1475 1566
C 350 32-76             800 850 1100 1288 1398
M 320 26-63           612 735 815 990 1137
F 268 19-52       376 412 500 620 725 867



Short-head-type Hydraulic Cone Crusher

Model

Type of Cavity

  Max Feedng Size(mm

Discharge Range(mm

  Motor Powerkw Capacity(th)-Open circuit,Closed discharge(mm)
          3 5 6 9 13 16 19 22 26 32 38

CCH639D

 C 70 6-19

75-90

     59 68 96 110 130
  M 51 5-16     45 59 68 96 110
  D 35 3-13   30 45 50 65 90

CCH651D

 C 89 9-22

185-200

       100 120 145 175 210
  M 70 6-16       82 105 130 160
  F 54 5-16     80 90 110 135 160

CCH667D

 EC 133 13-26

250-280

         280 310 340 370 390
  C 133 10-26         210 280 310 340 370 390
  M 89 6-19       130 168 215 260 290
  F 70 6-13       130 168 215
  EC 203 16-26             510 600 630 680
CCH684D C 178 13-26 400         455 488 552 600 620
  M 133 10-19         355 420 460 530
  F 105 6-16       220 310 375 428

Note:

1. The capacity is total tons per hour passing through crusher at open circuit when crushing medium and below hardness material and bulk density with 1.6x 10"kg/m". Capacities are relative to physical character and type of feeding, feeding size and composition and so on.
2. CCH667(D) and CCH684(D) standard configuration includes discharging opening of hydraulic locking and hydraulic motor adjustment, and you can choose CCH639(D),CCH651(D) as matching products.
