| MOQ: | 1 set |
| Standard Packaging: | upon request |
| Delivery Period: | 5-30 work days |
| Payment Method: | T/T |
Introduction

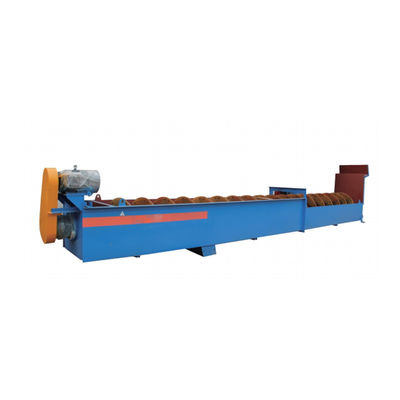

The XL series sand washing machine can clean and separate soil and impurities from sand and gravel. The novel sealing structure, adjustable overflow gate, and reliable transmission device ensure the cleaning and dehydration effect.
Technical Data
| Model | XL508 | XL610 | XL762 | XL915 | 2XL915 | XL1115 | 2XL1115 |
| Screw Diameter(mm) | 508 | 610 | 762 | 915 | 915 | 1115 | 1115 |
| Length of Tub(mm) | 6705 | 7225 | 7620 | 7585 | 7585 | 9782 | 9782 |
| Max Feed Size(mm) | ≤10 | ≤10 | ≤10 | ≤10 | ≤10 | ≤10 | ≤10 |
| Capacity(t/h) | 20 | 40-50 | 50-75 | 100 | 200 | 175 | 350 |
| Speed of Screw(r/min) | 38 | 32 | 26 | 21 | 21 | 17 | 17 |
| Motor Power(kw) | 5.5 | 7.5 | 11 | 11 | 2×11 | 15 | 2×15 |
| Water Consumption(t/h) | 6-60 | 6-63 | 9-63 | 10-80 | 20-160 | 20-150 | 40-300 |
| Overall Dimensions(L×W×H)(mm) | 6500×2020×2946 | 7350×2510×3303 | 8545×2650×3862 | 8900×2861×3821 | 8900×3765×3821 | 1270×3645×4340 | 11270×4365×4415 |
| Weight(t) | 2.52 | 3.09 | 5.23 | 6.27 | 11.11 | 10.18 | 17.94 |
Note: Capacities are relative to physical character and type of feeding, feeding size and composition and so on.
|
|
| MOQ: | 1 set |
| Standard Packaging: | upon request |
| Delivery Period: | 5-30 work days |
| Payment Method: | T/T |
Introduction
The XL series sand washing machine can clean and separate soil and impurities from sand and gravel. The novel sealing structure, adjustable overflow gate, and reliable transmission device ensure the cleaning and dehydration effect.
Technical Data
| Model | XL508 | XL610 | XL762 | XL915 | 2XL915 | XL1115 | 2XL1115 |
| Screw Diameter(mm) | 508 | 610 | 762 | 915 | 915 | 1115 | 1115 |
| Length of Tub(mm) | 6705 | 7225 | 7620 | 7585 | 7585 | 9782 | 9782 |
| Max Feed Size(mm) | ≤10 | ≤10 | ≤10 | ≤10 | ≤10 | ≤10 | ≤10 |
| Capacity(t/h) | 20 | 40-50 | 50-75 | 100 | 200 | 175 | 350 |
| Speed of Screw(r/min) | 38 | 32 | 26 | 21 | 21 | 17 | 17 |
| Motor Power(kw) | 5.5 | 7.5 | 11 | 11 | 2×11 | 15 | 2×15 |
| Water Consumption(t/h) | 6-60 | 6-63 | 9-63 | 10-80 | 20-160 | 20-150 | 40-300 |
| Overall Dimensions(L×W×H)(mm) | 6500×2020×2946 | 7350×2510×3303 | 8545×2650×3862 | 8900×2861×3821 | 8900×3765×3821 | 1270×3645×4340 | 11270×4365×4415 |
| Weight(t) | 2.52 | 3.09 | 5.23 | 6.27 | 11.11 | 10.18 | 17.94 |
Note: Capacities are relative to physical character and type of feeding, feeding size and composition and so on.
