| MOQ: | 1 set |
| Standard Packaging: | upon request |
| Delivery Period: | 5-30 work days |
| Payment Method: | T/T |
The production line of manufactured sand,which utilizing a wet production technics,regardless adopting any style of the sand washer,ts weakness is that the fine sand (≤0.16 mm) runs off seriously,some even run off 20% above,this not only decrease the yield,but also seriously influence the sand gradation,which results in the gradation being not reasonable,the fineness module being partial to thick and largely lowering the product quality of the manufactured sand.Too many fine sands are exhausted will also result in the pollution of the environment.

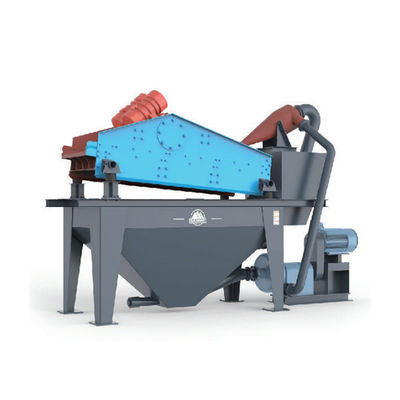

In order to solve the above questions,we develop and manufacture the SS series sand collecting system.They are utilized widely in aggregate processing system,the processing system of glass raw material,the production line of manufactured sand,and so on,they can solve the fine sand recovery questions.
Technical Data
|
Model |
Pump |
Cyclone (mm) |
Vibrating Screen |
Capacity (m³/h) |
Dimensions (LxWxH)(mm) |
|||
|
Power (kW) |
Size(inch) |
Mode |
DeckSize (m²) |
Power (kW) |
||||
| SS-06-300 | 7.5 | 2° | 300 | 0.6x1.5 | 0.9 | 2x0.75 | 40-60 | 3590x1342x2561 |
| SS-08-300 | 15 | 3 | 300 | 0.8x2.25 | 1.8 | 2x1.5 | 40-100 | 4494x1429x2880 |
| SS-10-350 | 18.5 | 350 | 1.0x2.25 | 2.25 | 2x1.5 | 70-140 | 4622x1680x4237 | |
| S8-12-550 | 37 | 5” | 550 | 1.2x3.0 | 3.6 | 2x2.2 | 150-300 | 6009x2014x3820 |
| SS-12-650 | 37 | 5° | 650 | 1.2x3.0 | 3.6 | 2×2.2 | 150-320 | 6011×2028x4060 |
| SS-14-750 | 45 | 6” | 750 | 1.4x3.0 | 4.2 | 2x3.0 | 180-343 | 6013x2042x4300 |
| SS-14-750(1I | 55 | 6” | 750 | 1.4x3.0 | 4.2 | 2x3.0 | 230-420 | 6659x2042x4202 |
| SS-16-2x650 | 55 | 10° | 2x650 | 1.6x3.75 | 6 | 2x5.5 | 350-800 | 7384×2350x4650 |
| SS-18-2x750 | 75 | 10° | 2x750 | 1.8x3.75 | 6.75 | 2x7.5 | 350-1000 | 7780x2545x4800 |
The equipment capacities listed are based on instantaneous sampling of medium hardness rocks.The above data is for reference only,please contact our engineers for equipmen selection for specific projects.
|
|
| MOQ: | 1 set |
| Standard Packaging: | upon request |
| Delivery Period: | 5-30 work days |
| Payment Method: | T/T |
The production line of manufactured sand,which utilizing a wet production technics,regardless adopting any style of the sand washer,ts weakness is that the fine sand (≤0.16 mm) runs off seriously,some even run off 20% above,this not only decrease the yield,but also seriously influence the sand gradation,which results in the gradation being not reasonable,the fineness module being partial to thick and largely lowering the product quality of the manufactured sand.Too many fine sands are exhausted will also result in the pollution of the environment.
In order to solve the above questions,we develop and manufacture the SS series sand collecting system.They are utilized widely in aggregate processing system,the processing system of glass raw material,the production line of manufactured sand,and so on,they can solve the fine sand recovery questions.
Technical Data
|
Model |
Pump |
Cyclone (mm) |
Vibrating Screen |
Capacity (m³/h) |
Dimensions (LxWxH)(mm) |
|||
|
Power (kW) |
Size(inch) |
Mode |
DeckSize (m²) |
Power (kW) |
||||
| SS-06-300 | 7.5 | 2° | 300 | 0.6x1.5 | 0.9 | 2x0.75 | 40-60 | 3590x1342x2561 |
| SS-08-300 | 15 | 3 | 300 | 0.8x2.25 | 1.8 | 2x1.5 | 40-100 | 4494x1429x2880 |
| SS-10-350 | 18.5 | 350 | 1.0x2.25 | 2.25 | 2x1.5 | 70-140 | 4622x1680x4237 | |
| S8-12-550 | 37 | 5” | 550 | 1.2x3.0 | 3.6 | 2x2.2 | 150-300 | 6009x2014x3820 |
| SS-12-650 | 37 | 5° | 650 | 1.2x3.0 | 3.6 | 2×2.2 | 150-320 | 6011×2028x4060 |
| SS-14-750 | 45 | 6” | 750 | 1.4x3.0 | 4.2 | 2x3.0 | 180-343 | 6013x2042x4300 |
| SS-14-750(1I | 55 | 6” | 750 | 1.4x3.0 | 4.2 | 2x3.0 | 230-420 | 6659x2042x4202 |
| SS-16-2x650 | 55 | 10° | 2x650 | 1.6x3.75 | 6 | 2x5.5 | 350-800 | 7384×2350x4650 |
| SS-18-2x750 | 75 | 10° | 2x750 | 1.8x3.75 | 6.75 | 2x7.5 | 350-1000 | 7780x2545x4800 |
The equipment capacities listed are based on instantaneous sampling of medium hardness rocks.The above data is for reference only,please contact our engineers for equipmen selection for specific projects.
