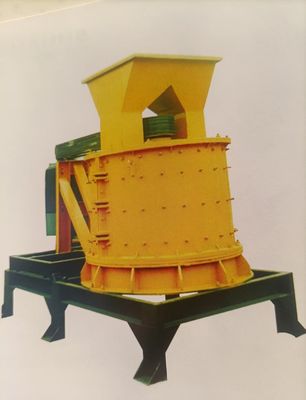

Compound Crusher,high crushing ratio, low energy consumption, smooth operation
  • name

Compound Crusher,high crushing ratio, low energy consumption, smooth operation

MOQ: 1 set
Price: 900--1000 USD/set
Standard Packaging: upon requirement
Delivery Period: 25working days
Supply Capacity: 10 sets per month
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
Haofeng
Minimum Order Quantity:
1 set
Price:
900--1000 USD/set
Packaging Details:
upon requirement
Delivery Time:
25working days
Supply Ability:
10 sets per month
Product Description



Scope of application:



Medium hardness materials. For example, cement raw materials, clinker, construction sand, iron ore, sandstone, gypsum, coal gangue, coal and other materials.



Application areas:



Widely used in secondary or tertiary crushing in industries such as mineral processing, coal, building materials, chemical, refractory materials, etc.



Working principle:



The vertical composite crusher is a fine crushing equipment developed by optimizing the main technical parameters based on similar crushing technologies at home and abroad. It has the advantages of impact crushing and hammer crushing.



Equipment features:



high crushing ratio, low energy consumption, smooth operation, simple structure, easy operation and maintenance. It is a new type of crushing equipment with multiple uses, high efficiency, and low cost.



Technical parameters:





Model Diameter Capacity  Entrance granularity  Outlet granularity Spindle speed   Motor Power  External dimensions
PFL-800 800mm 10-20t/h ＜100mm

＜3-5mm   60-90%

 934 r/m 30-45Kw 2500x1100x1400
PFL-1000 1000mm 20-40t/h ＜120mm

＜3-5mm   60-90%

 769 r/m 55Kw 3100x1750x1640
PFL-1250 1250mm 40-70t/h ＜150mm

＜3-5mm   60-90%

 530 r/m 90Kw

3600x1700x1600
PFL-1500 1500mm 70-100t/h ＜180mm

＜3-5mm   60-90%

 495 r/m 132Kw 3880x2150x2115
PFL-1750 1750mm 90-130t/h ＜200mm

＜3-5mm   60-90%

 424 r/m 160Kw 4310x2157x2150
PFL-2000 2000mm 100-160t/h ＜220mm

＜3-5mm   60-90%

 370 r/m 185Kw 4593x2157x2200




Can be customized according to requirements.
