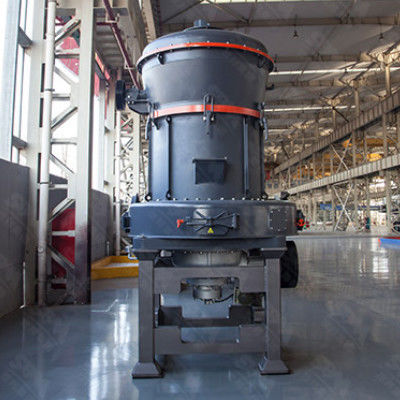

TRMC Coal Vertical Mill / Limestone Vertical Mill 2-150um Grinding Fineness
  • name

TRMC Coal Vertical Mill / Limestone Vertical Mill 2-150um Grinding Fineness

MOQ: 1 set
Price: 100000-200000 USD/set
Standard Packaging: upon request
Delivery Period: 15-30 work days
Payment Method: T/T
Supply Capacity: 3 set per 30 work days
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
HAOFENG
Machinery Test Report:
Provided
Dimensions:
Depends On The Model
Capacity:
Depends On The Model
Delivery:
15-30days
Weight:
Depends On The Model
Application:
Powder Grinding
Grinding Fineness:
2-150um
Minimum Order Quantity:
1 set
Price:
100000-200000 USD/set
Packaging Details:
upon request
Delivery Time:
15-30 work days
Payment Terms:
T/T
Supply Ability:
3 set per 30 work days
Highlight:

150um vertical coal mill

,

TRMC Coal Vertical Mill

,

TRMC limestone vertical mill

Product Description

TRMC Specification and Model of Coal Vertical Mill / Limestone Vertical Mill



Mainly used for grinding coal and limestone, it can also be used for grinding other mineral products.



Type Dia.of Disk Installed Power Max.Feeding Size Capacity
  (mm) (kw) (mm) (t/h)
TRMC36.4 3600 1250 50 65-85
TRMC31.3 3100 1000 50 60-70
TRMC28.2 2800 710 50 40-50
TRMC23.3 2300 640 50 35-45
TRMC20.3 2000 440 40 25-30
TRMC20.2 2000 335 40 20-25



NOTES :Raw Coal Feed Moisture≤15%;Outlet Moisture≤1.0%;Fineness:R80 μm=10%-15%(bituminous coal),R80 μm=1%- 5%(anthracite),Raw Coal grindablility of coal inlet HGI=45-80
