| MOQ: | 1 set |
| Standard Packaging: | upon request |
| Delivery Period: | 15-30 work days |
| Payment Method: | T/T |

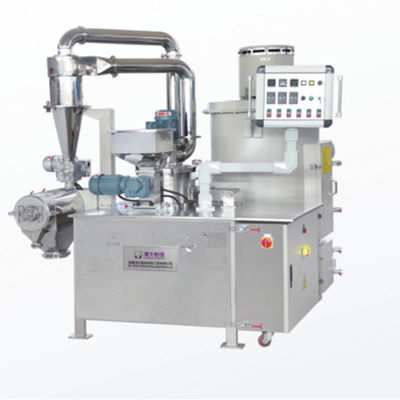

QDWF series grinding system
QDWF series grinder is a key equipment in whole powder coating production line, designed with functions of high speed milling , air classifying , cyclone sifting, and the fine powder collection, it can apply for production of pigment , calcium, carbonate , medicine and food etc.
Main features:
✸Stable particle size distribution, and the uniform particle size distribution can be adjusted.
✸High output and high recovery rate.
✸Low noise. Equipped with a special silencing device, it is easy to clean and maintain.
✸Meet the European ATEX explosion-proof design standard.
✸Safe and convenient operation.
| Specification | |||||||
| Mode | QDWF-07 | QDWF-10 | QDWF-20 | QDWF-25 | QDWF-30 | QDWF-40 | QDWF-50 |
| Output(kg/h) | 80-100 | 150-200 | 200-300 | 300-450 | 500-600 | 700-800 | 800-1000 |
| Main motor(kw) | 5.5 | 7.5 | 11 | 15 | 22 | 30 | 37 |
| Main mill speed(rpm) | 7500 | 7000 | 6000 | 6000 | 5000 | 4500 | 4000 |
| Classifier motor(kw | 1.1 | 1.1 | 2.2 | 3.0 | 4.0 | 4.0 | 5.5 |
| Classifier speed(rpm) | 0-2980 | 0-2980 | 0-2980 | 0-2980 | 0-2980 | 0-2980 | 0-2980 |
| Feeding motor(kw) | 0.37 | 0.55 | 1.1 | 1.1 | 1.5 | 1.5 | 2.2 |
| Fan motor(kw | 5.5 | 7.5 | 11 | 18.5 | 22 | 37 | 45 |
| Overall dimension(m) | 4.3×1.2×2.7 | 6.1×1.3×3.2 | 8×1.4×3.8 | 8×1.5×3.8 | 8×2.2×3.9 | 8×1.7×4 | 8×1.8×4 |
|
|
| MOQ: | 1 set |
| Standard Packaging: | upon request |
| Delivery Period: | 15-30 work days |
| Payment Method: | T/T |
QDWF series grinding system
QDWF series grinder is a key equipment in whole powder coating production line, designed with functions of high speed milling , air classifying , cyclone sifting, and the fine powder collection, it can apply for production of pigment , calcium, carbonate , medicine and food etc.
Main features:
✸Stable particle size distribution, and the uniform particle size distribution can be adjusted.
✸High output and high recovery rate.
✸Low noise. Equipped with a special silencing device, it is easy to clean and maintain.
✸Meet the European ATEX explosion-proof design standard.
✸Safe and convenient operation.
| Specification | |||||||
| Mode | QDWF-07 | QDWF-10 | QDWF-20 | QDWF-25 | QDWF-30 | QDWF-40 | QDWF-50 |
| Output(kg/h) | 80-100 | 150-200 | 200-300 | 300-450 | 500-600 | 700-800 | 800-1000 |
| Main motor(kw) | 5.5 | 7.5 | 11 | 15 | 22 | 30 | 37 |
| Main mill speed(rpm) | 7500 | 7000 | 6000 | 6000 | 5000 | 4500 | 4000 |
| Classifier motor(kw | 1.1 | 1.1 | 2.2 | 3.0 | 4.0 | 4.0 | 5.5 |
| Classifier speed(rpm) | 0-2980 | 0-2980 | 0-2980 | 0-2980 | 0-2980 | 0-2980 | 0-2980 |
| Feeding motor(kw) | 0.37 | 0.55 | 1.1 | 1.1 | 1.5 | 1.5 | 2.2 |
| Fan motor(kw | 5.5 | 7.5 | 11 | 18.5 | 22 | 37 | 45 |
| Overall dimension(m) | 4.3×1.2×2.7 | 6.1×1.3×3.2 | 8×1.4×3.8 | 8×1.5×3.8 | 8×2.2×3.9 | 8×1.7×4 | 8×1.8×4 |
