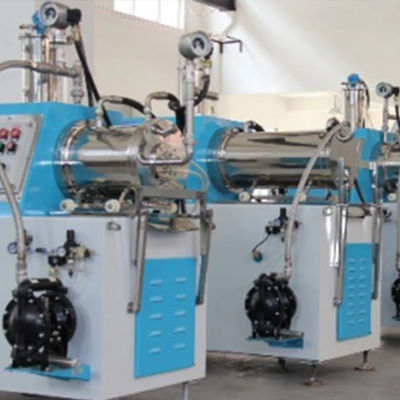

Sand Mill Stirred Ball Mill Ultra Fine Wide Adaptability Nano

MOQ:	1 set/part
Standard Packaging:	upon request
Delivery Period:	25-50 work days
Payment Method:	T/T
Supply Capacity:	10 sets per month

Detail Information

Product Description

Detail Information

Place of Origin

CHINA

Brand Name

HAOFENG

Advantage:

Multiple Models To Choose From, Low Investment, Energy-saving

Minimum Order Quantity:

1 set/part

Packaging Details:

upon request

Delivery Time:

25-50 work days

Payment Terms:

T/T

Supply Ability:

10 sets per month

Highlight:

Ultra fine Sand mill

Ultra fine stirred ball mill

Stirred ultra fine powder grinder

Product Description

The sand mill is a stirred ball mill mainly used for ultra-fine grinding processing of materials.The working principle of the sand mill is that the stirring device makes the grinding balls perform a stirring motion in the grinding tank, thereby generating strong impact force, extrusion force and shear force. These forces act on the materials to crush them to a nanometer or micron-level fineness.

- Features:

High grinding efficiency: The stirring device makes the grinding balls perform a stirring motion in the grinding tank, generating strong impact force, extrusion force and shear force. Compared with ordinary ball mills, it has stronger shear force and impact force, and can achieve nano-scale and micron-scale grinding.

Relatively simple structure: It is mainly composed of a machine body, a grinding cylinder, a sand grinding disc (paddle), grinding media, a filter screen, a feed pump and a discharge pipe.

Wide application range: It is suitable for ultra-fine crushing and processing of various materials such as metallurgy, chemical industry, ceramics and new materials.

model:

model	Effective volume (L)	Host power (KW)	Separate motor power(KW)	Process Batch(L)	media size (mm)	weight(kg)	External dimensions (mm)
HMLS-1L		4		3-30	0.03-1.0	200	530-470-625
HMLS-2L	2L	7.5	4	5-50	0.03-1.0	500	980-750-1550
HMLS-10L	10L	22	7.5	30-200	0.03-1.0	1800	2200-1100-1500
HMLS-30L	30L	45	11	60-500	0.03-1.0	2100	2300-1200-1700
HMLS-60L	60L	75	18.5	150-1000	0.03-1.0	3600	2600-1400-1900
HMLS-150L	150L	185	30	300-3000L	0.03-1.0	7500	3200-1600-2100

Can be customized according to customer requirements

Can provide long-term technical guidance to customers
