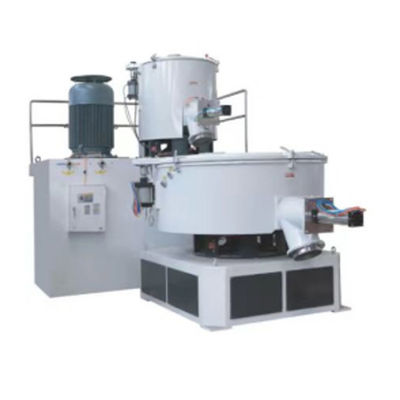

SRL-Z series mixer unit is applicable for mixing, colouring and drying of various resin such as polyethylene, polypropylene, polyvinyl chloride etcand in the craft of engineering plastics such as ABS,polycarbonate etc before forming and processing as well as in the mixing of phenolicresin.
The unit combines heat mixing and cool mixing craft together. The materials after heat mixing can be got into cool mixer for coolingautomatically,exhausts remaining gas and prevent agglomeration.
This unit is developed by importing and absorbing advanced foreign technology. By adopting PLC control, it features high automatic level, goodmixing result. Heat mixing has such functions as selffriction, and electric heating. The vane has passed the test of dynamic and staticequilibrium. The cover adopts double concave-convex seal. Main axis seal adopts special tech of our company, also equipped with pulse dustcatching device. Cooling mixer absorbed slowdown tech from overseas, adopts direct slowdown device, overcomes the deadly weaknesscausing by use of retarder, that makes it running smoothly even more. This machine has come up to the same kind of product level in the world.That is an ideal equipment for producing plates, pipes and special-shaped materials etc.
Main Technical Parameter
|
Model／Specs |
SRL-Z100/200 Hot mixing/cold mixing |
SRL-Z200/500 Hot mixing/cold mixing |
SRL-Z300/600 Hot mixing/cold mixing |
SRL-Z500/1000 Hot mixing/cold mixing |
SRL-Z800/1600 Hot mixing/cold mixing |
|
Total cubage(L) |
100/200
|
200/500
|
300/600
|
500/1000
|
800/1600 |
|
Effective cubag(L) |
65/130 |
150/320 |
225/380 |
375/650 |
600/1050 |
|
Mixing speed(rpm) |
1300/80
|
950/80
|
950/80
|
860/60
|
740/50 |
|
Heating ＆ cooling manner |
electric heating self-friction／water cooling |
||||
|
Mixing time(min／batch) |
8-12
|
8-12
|
8-12
|
8-12
|
8-15 |
|
Motor power(kw) |
22/7.5 |
45/11 |
55/11 |
75/15 |
110/22 |
|
Dimension(LxWxH)(mm) |
1950x1600x1800
|
4580x2240x2470
|
4800x2640x2480
|
4600x3000x4050
|
5170x3200x4480 |
|
Weight(kg) |
2200 |
3400 |
3600
|
4800
|
6200 |
|
The heating and stirring are controlled by frequency conversion, and the electrical configuration varies according to the customer's mixed materials. |
|||||
|
|
SRL-Z series mixer unit is applicable for mixing, colouring and drying of various resin such as polyethylene, polypropylene, polyvinyl chloride etcand in the craft of engineering plastics such as ABS,polycarbonate etc before forming and processing as well as in the mixing of phenolicresin.
The unit combines heat mixing and cool mixing craft together. The materials after heat mixing can be got into cool mixer for coolingautomatically,exhausts remaining gas and prevent agglomeration.
This unit is developed by importing and absorbing advanced foreign technology. By adopting PLC control, it features high automatic level, goodmixing result. Heat mixing has such functions as selffriction, and electric heating. The vane has passed the test of dynamic and staticequilibrium. The cover adopts double concave-convex seal. Main axis seal adopts special tech of our company, also equipped with pulse dustcatching device. Cooling mixer absorbed slowdown tech from overseas, adopts direct slowdown device, overcomes the deadly weaknesscausing by use of retarder, that makes it running smoothly even more. This machine has come up to the same kind of product level in the world.That is an ideal equipment for producing plates, pipes and special-shaped materials etc.
Main Technical Parameter
|
Model／Specs |
SRL-Z100/200 Hot mixing/cold mixing |
SRL-Z200/500 Hot mixing/cold mixing |
SRL-Z300/600 Hot mixing/cold mixing |
SRL-Z500/1000 Hot mixing/cold mixing |
SRL-Z800/1600 Hot mixing/cold mixing |
|
Total cubage(L) |
100/200
|
200/500
|
300/600
|
500/1000
|
800/1600 |
|
Effective cubag(L) |
65/130 |
150/320 |
225/380 |
375/650 |
600/1050 |
|
Mixing speed(rpm) |
1300/80
|
950/80
|
950/80
|
860/60
|
740/50 |
|
Heating ＆ cooling manner |
electric heating self-friction／water cooling |
||||
|
Mixing time(min／batch) |
8-12
|
8-12
|
8-12
|
8-12
|
8-15 |
|
Motor power(kw) |
22/7.5 |
45/11 |
55/11 |
75/15 |
110/22 |
|
Dimension(LxWxH)(mm) |
1950x1600x1800
|
4580x2240x2470
|
4800x2640x2480
|
4600x3000x4050
|
5170x3200x4480 |
|
Weight(kg) |
2200 |
3400 |
3600
|
4800
|
6200 |
|
The heating and stirring are controlled by frequency conversion, and the electrical configuration varies according to the customer's mixed materials. |
|||||
