| MOQ: | 1 set/part |
| Standard Packaging: | upon request |
| Delivery Period: | 5-30 work days |
| Payment Method: | T/T |

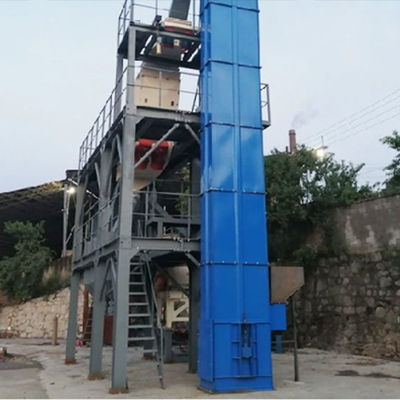

Used for vertical conveying of materials
Features: It has a wide lifting range and is not strict with the types, characteristics and lump size of materials. The material temperature is ≤250℃. It has a large conveying capacity and small driving force. It has a long service life, stable operation, good sealing performance, and is convenient for operation and maintenance. Its mechanical rigidity is better than that of other elevators.
Scope of application: Raw materials, cement, coal, limestone, dry clay, clinker, etc.
| NE Specifications and performance of bucket elevator | |||||||
| model | Conveying capacity m³/h |
Speed m/s |
Spindle speed rpm |
Material size mm |
hopper | ||
| Dou RongL | Bucket Width mm | Bucket distance mm | |||||
| NE15 | 15 | 0.5 | 15.54 | <40 | 2.5 | 250 | 203 |
| NE30 | 32 | 0.5 | 16.45 | <50 | 7.8 | 300 | 305 |
| NE50 | 60 | 0.5 | 16.45 | <50 | 15.7 | 300 | 305 |
| NE100 | 110 | 0.5 | 14.13 | <70 | 35 | 400 | 400 |
| NE150 | 170 | 0.5 | 14.13 | <70 | 52.2 | 600 | 400 |
| NE200 | 210 | 0.5 | 10.9 | <100 | 84.6 | 600 | 500 |
| NE300 | 320 | 0.5 | 10.9 | <100 | 127.5 | 600 | 500 |
| NE400 | 380 | 0.5 | 8.3 | <120 | 182.5 | 700 | 600 |
| NE500 | 470 | 0.5 | 7.1 | <120 | 260.9 | 700 | 700 |
| NE600 | 600 | 0.5 | 7.1 | <120 | 330.2 | 700 | 700 |
| NE800 | 800 | 0.5 | 6.2 | <140 | 501.8 | 800 | 800 |
|
|
| MOQ: | 1 set/part |
| Standard Packaging: | upon request |
| Delivery Period: | 5-30 work days |
| Payment Method: | T/T |
Used for vertical conveying of materials
Features: It has a wide lifting range and is not strict with the types, characteristics and lump size of materials. The material temperature is ≤250℃. It has a large conveying capacity and small driving force. It has a long service life, stable operation, good sealing performance, and is convenient for operation and maintenance. Its mechanical rigidity is better than that of other elevators.
Scope of application: Raw materials, cement, coal, limestone, dry clay, clinker, etc.
| NE Specifications and performance of bucket elevator | |||||||
| model | Conveying capacity m³/h |
Speed m/s |
Spindle speed rpm |
Material size mm |
hopper | ||
| Dou RongL | Bucket Width mm | Bucket distance mm | |||||
| NE15 | 15 | 0.5 | 15.54 | <40 | 2.5 | 250 | 203 |
| NE30 | 32 | 0.5 | 16.45 | <50 | 7.8 | 300 | 305 |
| NE50 | 60 | 0.5 | 16.45 | <50 | 15.7 | 300 | 305 |
| NE100 | 110 | 0.5 | 14.13 | <70 | 35 | 400 | 400 |
| NE150 | 170 | 0.5 | 14.13 | <70 | 52.2 | 600 | 400 |
| NE200 | 210 | 0.5 | 10.9 | <100 | 84.6 | 600 | 500 |
| NE300 | 320 | 0.5 | 10.9 | <100 | 127.5 | 600 | 500 |
| NE400 | 380 | 0.5 | 8.3 | <120 | 182.5 | 700 | 600 |
| NE500 | 470 | 0.5 | 7.1 | <120 | 260.9 | 700 | 700 |
| NE600 | 600 | 0.5 | 7.1 | <120 | 330.2 | 700 | 700 |
| NE800 | 800 | 0.5 | 6.2 | <140 | 501.8 | 800 | 800 |
