| MOQ: | 1 set/part |
| Standard Packaging: | upon request |
| Delivery Period: | 5-30 work days |
| Payment Method: | T/T |
| Supply Capacity: | 20 set per 30 work days |

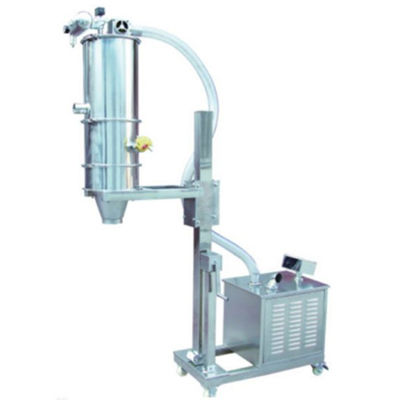

A vacuum feeder is a device that uses a vacuum pump to extract air, keeping the inlet of the suction nozzle and the entire system in a certain vacuum state. The powder particles are sucked into the nozzle along with the external air to form a material airflow, which passes through the suction pipe and reaches the hopper where gas and material are separated. The separated materials enter the receiving equipment. Feeding and discharging are achieved through the continuous opening and closing of pneumatic three-way valves, which are controlled by the control center.
| model | Motor power (kw) |
Conveying capacity Depends on the material and conveying distance |
Gas supply pressure | Suction pipe diameter (mm) |
Dimensions A*B (mm) |
| ZKS-1 | 1.5 | 100-300kg/h | 0.6Mpa | φ38 | φ220*820 |
| ZKS-2 | 2.2 | 200-500kg/h | 0.6Mpa | φ38 | φ220*820 |
| ZKS-3 | 3.0 | 300-800kg/h | 0.6Mpa | φ51 | φ290*950 |
| ZKS-4 | 5.5 | 800-1200kg/h | 0.6Mpa | φ51 | φ420*1250 |
| ZKS-5 | 4.0 | 1000-1500kg/h | 0.6Mpa | φ51 | φ420*1350 |
| ZKS-6 | 5.5 | 1500-2000kg/h | 0.6Mpa | φ63 | φ420*1450 |
| ZKS-7 | 7.5 | 2000-3000kg/h | 0.6Mpa | φ76 | φ420*1650 |
| ZKS-10-6 | 7.5 | 2000-4000kg/h | 0.6Mpa | φ76 | φ600*1500 |
| ZKS-20-5 | 11 | 3000-5000kg/h | 0.6Mpa | φ76 | φ800*1900 |
| model | Air consumption (L/min) | Conveying capacity (kg/h) |
| QVC-1 | 180 | 350 |
| QVC-2 | 360 | 700 |
| QVC-3 | 720 | 1500 |
| QVC-4 | 1440 | 3000 |
| QVC-5 | 2880 | 6000 |
| QVC-6 | 4320 | 9000 |
|
|
| MOQ: | 1 set/part |
| Standard Packaging: | upon request |
| Delivery Period: | 5-30 work days |
| Payment Method: | T/T |
| Supply Capacity: | 20 set per 30 work days |
A vacuum feeder is a device that uses a vacuum pump to extract air, keeping the inlet of the suction nozzle and the entire system in a certain vacuum state. The powder particles are sucked into the nozzle along with the external air to form a material airflow, which passes through the suction pipe and reaches the hopper where gas and material are separated. The separated materials enter the receiving equipment. Feeding and discharging are achieved through the continuous opening and closing of pneumatic three-way valves, which are controlled by the control center.
| model | Motor power (kw) |
Conveying capacity Depends on the material and conveying distance |
Gas supply pressure | Suction pipe diameter (mm) |
Dimensions A*B (mm) |
| ZKS-1 | 1.5 | 100-300kg/h | 0.6Mpa | φ38 | φ220*820 |
| ZKS-2 | 2.2 | 200-500kg/h | 0.6Mpa | φ38 | φ220*820 |
| ZKS-3 | 3.0 | 300-800kg/h | 0.6Mpa | φ51 | φ290*950 |
| ZKS-4 | 5.5 | 800-1200kg/h | 0.6Mpa | φ51 | φ420*1250 |
| ZKS-5 | 4.0 | 1000-1500kg/h | 0.6Mpa | φ51 | φ420*1350 |
| ZKS-6 | 5.5 | 1500-2000kg/h | 0.6Mpa | φ63 | φ420*1450 |
| ZKS-7 | 7.5 | 2000-3000kg/h | 0.6Mpa | φ76 | φ420*1650 |
| ZKS-10-6 | 7.5 | 2000-4000kg/h | 0.6Mpa | φ76 | φ600*1500 |
| ZKS-20-5 | 11 | 3000-5000kg/h | 0.6Mpa | φ76 | φ800*1900 |
| model | Air consumption (L/min) | Conveying capacity (kg/h) |
| QVC-1 | 180 | 350 |
| QVC-2 | 360 | 700 |
| QVC-3 | 720 | 1500 |
| QVC-4 | 1440 | 3000 |
| QVC-5 | 2880 | 6000 |
| QVC-6 | 4320 | 9000 |
