| MOQ: | 1 set/part |
| Standard Packaging: | upon request |
| Delivery Period: | 15-30 work days |
| Payment Method: | T/T |
| Supply Capacity: | 5 set per 15 work days |
Purpose:

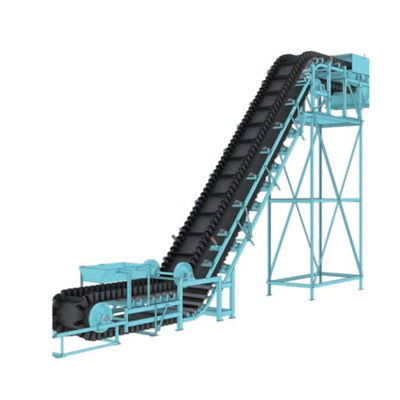

1. The large angle edge belt conveyor is a general purpose continuous conveying equipment for bulk materials, using a conveyor belt with wavy edges and transverse partitions. Therefore, it is particularly suitable for high angle conveying.
2. The large angle belt conveyor can be used in industries such as coal, chemical, building materials, metallurgy, power, light industry, grain, ports, and ships to transport various bulk materials with a specific gravity of 0.5-2.5t/m3 in a working environment humidity range of -15C -+40C.
3. For materials with special requirements for transportation, such as high temperature, materials with acid, alkali, oil substances or organic solvents, special conveyor belts are required.
4. The inclined angle of the belt conveyor with a large angle of inclination is within the range of 0 ° -90 °.
| model | TD160 | TD250 | TD315 | TD400 | ||||||||||||
| Hopper form | Q | h | zD | Sd | Q | h | zD | Sd | Q | h | zD | Sd | Q | h | zD | Sd |
| Transport capacity(m³/h) | 5.4 | 9.6 | 9.6 | 16 | 12 | 22 | 23 | 35 | 17 | 30 | 25 | 40 | 24 | 46 | 41 | 66 |
| Bucket width(mm) | 160 | 250 | 315 | 400 | ||||||||||||
| Volume/Bucket(L) | 0.5 | 0.9 | 4.2 | 1.9 | 1.3 | 2.2 | 3.0 | 4.6 | 2 | 3.6 | 3.8 | 5.8 | 3.1 | 5.6 | 5.9 | 9.4 |
| Bucket distance(mm) | 280 | 350 | 360 | 450 | 400 | 500 | 480 | 560 | ||||||||
| belt width(mm) | 200 | 300 | 400 | 500 | ||||||||||||
| Speed(m/s) | 1.4 | 1.6 | 1.6 | 1.8 | ||||||||||||
| Maximum size of material(mm) | 25 | 35 | 45 | 55 | ||||||||||||
| model | TD500 | TD630 | TD160 | TD250 | TD350 | TD450 | ||||||||||
| Hopper form | Q | h | zD | Sd | h | zD | Sd | Q | S | Q | S | Q | S | Q | S | |
| Transport capacity(m³/h) | 38 | 70 | 58 | 16 | 85 | 89 | 142 | 4.7 | 8 | 18 | 22 | 25 | 42 | 50 | 72 | |
| Bucket width(mm) | 500 | 630 | 160 | 250 | 350 | 450 | ||||||||||
| Volume/Bucket(L) | 4.8 | 9 | 9.3 | 15 | 14 | 14.6 | 23.5 | 0.65 | 1.1 | 2.6 | 3.2 | 7 | 7.8 | 14.5 | 15 | |
| Bucket distance(mm) | 500 | 625 | 710 | 300 | 400 | 500 | 640 | |||||||||
| belt width(mm) | 600 | 700 | 200 | 300 | 400 | 500 | ||||||||||
| Speed(m/s) | 1.8 | 2 | 1 | 1.25 | 1.25 | 1.25 | ||||||||||
| Maximum size of material(mm) | 60 | 70 | 25 | 35 | 45 | 55 | ||||||||||
|
|
| MOQ: | 1 set/part |
| Standard Packaging: | upon request |
| Delivery Period: | 15-30 work days |
| Payment Method: | T/T |
| Supply Capacity: | 5 set per 15 work days |
Purpose:
1. The large angle edge belt conveyor is a general purpose continuous conveying equipment for bulk materials, using a conveyor belt with wavy edges and transverse partitions. Therefore, it is particularly suitable for high angle conveying.
2. The large angle belt conveyor can be used in industries such as coal, chemical, building materials, metallurgy, power, light industry, grain, ports, and ships to transport various bulk materials with a specific gravity of 0.5-2.5t/m3 in a working environment humidity range of -15C -+40C.
3. For materials with special requirements for transportation, such as high temperature, materials with acid, alkali, oil substances or organic solvents, special conveyor belts are required.
4. The inclined angle of the belt conveyor with a large angle of inclination is within the range of 0 ° -90 °.
| model | TD160 | TD250 | TD315 | TD400 | ||||||||||||
| Hopper form | Q | h | zD | Sd | Q | h | zD | Sd | Q | h | zD | Sd | Q | h | zD | Sd |
| Transport capacity(m³/h) | 5.4 | 9.6 | 9.6 | 16 | 12 | 22 | 23 | 35 | 17 | 30 | 25 | 40 | 24 | 46 | 41 | 66 |
| Bucket width(mm) | 160 | 250 | 315 | 400 | ||||||||||||
| Volume/Bucket(L) | 0.5 | 0.9 | 4.2 | 1.9 | 1.3 | 2.2 | 3.0 | 4.6 | 2 | 3.6 | 3.8 | 5.8 | 3.1 | 5.6 | 5.9 | 9.4 |
| Bucket distance(mm) | 280 | 350 | 360 | 450 | 400 | 500 | 480 | 560 | ||||||||
| belt width(mm) | 200 | 300 | 400 | 500 | ||||||||||||
| Speed(m/s) | 1.4 | 1.6 | 1.6 | 1.8 | ||||||||||||
| Maximum size of material(mm) | 25 | 35 | 45 | 55 | ||||||||||||
| model | TD500 | TD630 | TD160 | TD250 | TD350 | TD450 | ||||||||||
| Hopper form | Q | h | zD | Sd | h | zD | Sd | Q | S | Q | S | Q | S | Q | S | |
| Transport capacity(m³/h) | 38 | 70 | 58 | 16 | 85 | 89 | 142 | 4.7 | 8 | 18 | 22 | 25 | 42 | 50 | 72 | |
| Bucket width(mm) | 500 | 630 | 160 | 250 | 350 | 450 | ||||||||||
| Volume/Bucket(L) | 4.8 | 9 | 9.3 | 15 | 14 | 14.6 | 23.5 | 0.65 | 1.1 | 2.6 | 3.2 | 7 | 7.8 | 14.5 | 15 | |
| Bucket distance(mm) | 500 | 625 | 710 | 300 | 400 | 500 | 640 | |||||||||
| belt width(mm) | 600 | 700 | 200 | 300 | 400 | 500 | ||||||||||
| Speed(m/s) | 1.8 | 2 | 1 | 1.25 | 1.25 | 1.25 | ||||||||||
| Maximum size of material(mm) | 60 | 70 | 25 | 35 | 45 | 55 | ||||||||||
