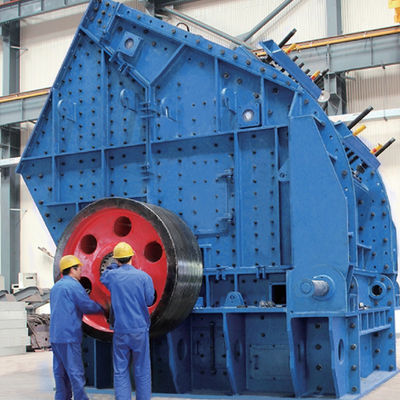

Advanced CH Series Lmpact Crusher Machinery Coarse Crushing high wear resistant

CH Series lmpact Crusher is  absorb the advanced German technology and combine the actual situation in China to optimize the design. The whole structure is simple, practical,reasonable,more humanized, besides the cavity is larger and better, The unique heavy rotor and special locking system,high wear resistant material perfect crusher cavity design, improved the productivity and production quality.

CH Series lmpact Crusher is divided into coarse crushing and medium crusher type crusher.

Coarse crushing has the advantages of large feed particle size, high yield, good particle shape, good safety performance, and long service life of wear-resistant parts.

The CH series impact crusher not only increases the crushing area of the crushing chamber, but also improves production efficiency under various working conditions by optimizing the rotor structure. The heavy-duty rotor increases the rotational inertia, obtains a larger crushing ratio, increases production, reduces operating costs, and saves energy consumption.

The CH series impact crusher is widely used for crushing various low to medium hardness ores, and can perform coarse, medium, and fine crushing in primary and secondary crushing. Mainly used in industries such as mining, building materials, metallurgy, cement,chemistry etc,

Characteristics and advantages

High quality steel plates and wear-resistant components reduce wear and extend the service life of each component.

Strong product commonality can reduce cost. Two-cavity impact crusher can become three-cavity machine by adding grinding racks (A), and no need to change other parts.

Heavy duty rotor, finite element force analysis was conducted to optimize the design. The structure is more reasonable, the moment of inertia is greater, and the crushing ability is stronger.

After the rotor welding is completed, conduct a dynamic balance experiment before assembly. Make the rotor run more smoothly and have a longer lifespan.

The main shaft is processed using high-quality forgings, and the entire shaft adopts a keyless design with a tension sleeve connection method, making the equipment more reliable in operation and easier to maintain in the later stage.

Unique plate hammer locking device, with greater tightening torque and greater safety. The replacement of the plate hammer is simple and fast.

Standardized design of lining board, with stronger interchangeability. Reduce the types of spare parts.
Simple and practical locking device that tightly locks the housing, making maintenance work more convenient.

Unique hydraulic device design is convenient for opening the frame racks to replace wear parts and adjust the discharge size.

Simple adjustment of impact rack and grinding rack,not easy to damage,convenient maintenance and low cost.

Low content of needle shaped and sheet-like products

Protective device: Each impact bracket has a protective device. It can prevent unbreakable objects from entering the interior of the crusher and causing damage to the machine.

Repair boom (optional): Replacing parts only requires one person to operate.
