| MOQ: | 1 set |
| Standard Packaging: | upon request |
| Delivery Period: | 5-30 work days |
| Payment Method: | T/T |

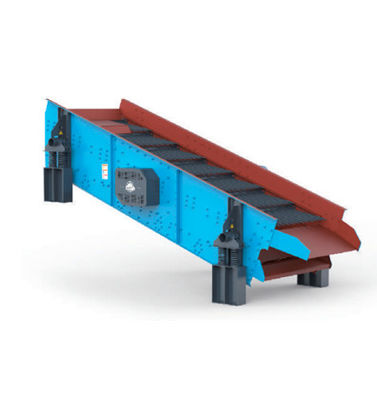

YKT series Grizzly Screen is general screening equipment with special screen surface developed by our company.It has high screening effciency,relatively large processing capacity,and is not easy to block holes.It is suitable for construction waste (garbage from demolition and decoration),household garbage,bulky garbage and other mixed types of garbage.It also can be used as gradation of materials with a large amount of mud.The equipment has the characteristics of simple structure,convenient maintenance,high strength,impact resistance,abrasion resistance,and low noise.
Features and Benefits
Cantilever screen surface increases vibration elasticity and screening efficiency.
The bar is fixed on the vertical plate of I-beam,which is easy to replace.
Work stable with large capacity.
Better separation effect for mixed materials with multi-density.
Technical Data
| Model | YKT1550 | YKT1850 | YKT2050 |
| Screening Area(m²) | 7.5 | 9 | 10 |
| Grizzly Spacing(mm) | 100 | 100 | 100 |
| Screen Deck | 1 | 1 | 1 |
| Installation Slope(°) | 10 | 10 | 10 |
| Amplitude (mm) | 6-8 | 6-8 | 6-8 |
| Vibrating Frequency(r/min) | 970 | 970 | 970 |
| Max Feeding Size (mm) | 300 | 400 | 400 |
| Capacity (t/h) | 50-120 | 113-578 | 250-800 |
| Motor Power (kW) | 15 | 18.5 | 30 |
| Overall Dimensions (L×W×H)(mm) | 5101*3100*3389 | 5101*3408*3389 | 5101*3608*3389 |
The equipment capacities listed are based on instantaneous sampling of medium hardness rocks.The above data is for reference only,please contact our engineers for equipment selection for specific projects.
|
|
| MOQ: | 1 set |
| Standard Packaging: | upon request |
| Delivery Period: | 5-30 work days |
| Payment Method: | T/T |
YKT series Grizzly Screen is general screening equipment with special screen surface developed by our company.It has high screening effciency,relatively large processing capacity,and is not easy to block holes.It is suitable for construction waste (garbage from demolition and decoration),household garbage,bulky garbage and other mixed types of garbage.It also can be used as gradation of materials with a large amount of mud.The equipment has the characteristics of simple structure,convenient maintenance,high strength,impact resistance,abrasion resistance,and low noise.
Features and Benefits
Cantilever screen surface increases vibration elasticity and screening efficiency.
The bar is fixed on the vertical plate of I-beam,which is easy to replace.
Work stable with large capacity.
Better separation effect for mixed materials with multi-density.
Technical Data
| Model | YKT1550 | YKT1850 | YKT2050 |
| Screening Area(m²) | 7.5 | 9 | 10 |
| Grizzly Spacing(mm) | 100 | 100 | 100 |
| Screen Deck | 1 | 1 | 1 |
| Installation Slope(°) | 10 | 10 | 10 |
| Amplitude (mm) | 6-8 | 6-8 | 6-8 |
| Vibrating Frequency(r/min) | 970 | 970 | 970 |
| Max Feeding Size (mm) | 300 | 400 | 400 |
| Capacity (t/h) | 50-120 | 113-578 | 250-800 |
| Motor Power (kW) | 15 | 18.5 | 30 |
| Overall Dimensions (L×W×H)(mm) | 5101*3100*3389 | 5101*3408*3389 | 5101*3608*3389 |
The equipment capacities listed are based on instantaneous sampling of medium hardness rocks.The above data is for reference only,please contact our engineers for equipment selection for specific projects.
