| MOQ: | 1 set |
| Standard Packaging: | upon request |
| Delivery Period: | 5-30 work days |
| Payment Method: | T/T |

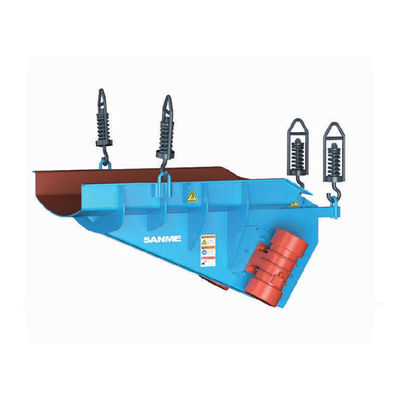

GZG Series Vibrating Feeder is used to convey bulk,grainy and powdery materials continuously and evenly from stock bin to targeted equipment.They are widely applied in fields such as minerals processing,coal,building materials,etc.
| Model |
Max Feeding Size (mm) |
Vibrating Speed (r/min) |
Double Amplitude (mm) |
Capacity (t/h) |
Motor Power (kW) |
Size of Funnel (mm) |
Overall Dimension (mm) |
|
| Horzonta | -10° | |||||||
| GZG40-4 | 100 | 1450 | 4 | 30 | 40 | 2×0.25 | 400×1000×200 | 1337×750×600 |
| GZG50-4 | 150 | 1450 | 4 | 60 | 85 | 2×0.25 | 500×1000×200 | 1374×800×630 |
| GZG63-4 | 200 | 1450 | 4 | 110 | 150 | 2×0.50 | 630×1250×250 | 1648×1000×767 |
| GZG80-4 | 250 | 1450 | 4 | 160 | 230 | 2×0.75 | 800×1500×250 | 1910×1188×850 |
| GZG90-4 | 250 | 1450 | 4 | 180 | 250 | 2×0.75 | 900×1483×250 | 2003×1178×960 |
| GZG100-4 | 300 | 1450 | 4 | 270 | 380 | 2×1.1 | 1000×1750×250 | 2190×1362×900 |
| GZG110-4 | 300 | 1450 | 4 | 300 | 420 | 2×1.1 | 1100×1673×250 | 2151×1362×970 |
| GZG125-4 | 350 | 1450 | 4 | 460 | 650 | 2×1.5 | 1250×2000×315 | 2540×1500×1030 |
| GZG130-4 | 350 | 1450 | 4 | 480 | 670 | 2×1.5 | 1300×2040×300 | 2544×1556×1084 |
| GZG150-6 | 350 | 975 | 4-7 | 520 | 750 | 2×3.0 | 1500×1800×400 | 2250×1864×1412 |
| GZG160-6 | 500 | 1450 | 4 | 770 | 1100 | 2×3.0 | 1600×2500×315 | 3050×1850×1110 |
| GZG180-4 | 500 | 1450 | 3 | 900 | 1200 | 2×3.0 | 1800×2325×375 | 2885×2210×1260 |
| GZG200-4 | 500 | 1450 | 2.5 | 1000 | 1400 | 2×3.7 | 2000×3000×400 | 3490×2400×1220 |
The equipment capacities listed are based on instantaneous sampling of medium hardness rocks.The above data is for reference only,please contact our engineers for equipment selection for specific projects.
|
|
| MOQ: | 1 set |
| Standard Packaging: | upon request |
| Delivery Period: | 5-30 work days |
| Payment Method: | T/T |
GZG Series Vibrating Feeder is used to convey bulk,grainy and powdery materials continuously and evenly from stock bin to targeted equipment.They are widely applied in fields such as minerals processing,coal,building materials,etc.
| Model |
Max Feeding Size (mm) |
Vibrating Speed (r/min) |
Double Amplitude (mm) |
Capacity (t/h) |
Motor Power (kW) |
Size of Funnel (mm) |
Overall Dimension (mm) |
|
| Horzonta | -10° | |||||||
| GZG40-4 | 100 | 1450 | 4 | 30 | 40 | 2×0.25 | 400×1000×200 | 1337×750×600 |
| GZG50-4 | 150 | 1450 | 4 | 60 | 85 | 2×0.25 | 500×1000×200 | 1374×800×630 |
| GZG63-4 | 200 | 1450 | 4 | 110 | 150 | 2×0.50 | 630×1250×250 | 1648×1000×767 |
| GZG80-4 | 250 | 1450 | 4 | 160 | 230 | 2×0.75 | 800×1500×250 | 1910×1188×850 |
| GZG90-4 | 250 | 1450 | 4 | 180 | 250 | 2×0.75 | 900×1483×250 | 2003×1178×960 |
| GZG100-4 | 300 | 1450 | 4 | 270 | 380 | 2×1.1 | 1000×1750×250 | 2190×1362×900 |
| GZG110-4 | 300 | 1450 | 4 | 300 | 420 | 2×1.1 | 1100×1673×250 | 2151×1362×970 |
| GZG125-4 | 350 | 1450 | 4 | 460 | 650 | 2×1.5 | 1250×2000×315 | 2540×1500×1030 |
| GZG130-4 | 350 | 1450 | 4 | 480 | 670 | 2×1.5 | 1300×2040×300 | 2544×1556×1084 |
| GZG150-6 | 350 | 975 | 4-7 | 520 | 750 | 2×3.0 | 1500×1800×400 | 2250×1864×1412 |
| GZG160-6 | 500 | 1450 | 4 | 770 | 1100 | 2×3.0 | 1600×2500×315 | 3050×1850×1110 |
| GZG180-4 | 500 | 1450 | 3 | 900 | 1200 | 2×3.0 | 1800×2325×375 | 2885×2210×1260 |
| GZG200-4 | 500 | 1450 | 2.5 | 1000 | 1400 | 2×3.7 | 2000×3000×400 | 3490×2400×1220 |
The equipment capacities listed are based on instantaneous sampling of medium hardness rocks.The above data is for reference only,please contact our engineers for equipment selection for specific projects.
