| MOQ: | 1 set |
| Standard Packaging: | upon request |
| Delivery Period: | 5-30 work days |
| Payment Method: | T/T |

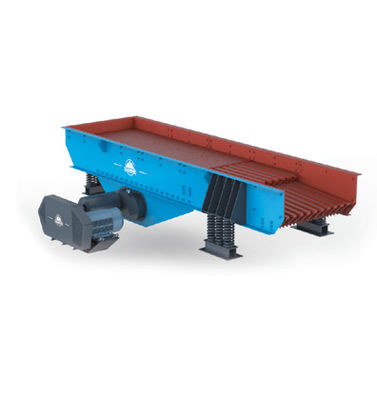

ZSW Series Vibrating Grizzly Feeder is mainly used to feed material into the primary crusher continuously.Meanwhile,it can screen the fine material and make the crusher more powerful.
Features and Benefits
Smooth vibrating.
The special fence can prevent the block of raw material.
The distance between fences is adjustable.
Frequency conversion motor can be equipped to facilitate feeding control,and frequent startup of motor is avoided.
Technical Data
| Model |
Max Feeding Size (mm) |
Capacity (t/h) |
Motor Power(kW) |
Installation Angle(°) |
Overall Dimensions (L×W×H)(mm) |
Size of Funnel (mm) |
| ZSW-280×85 | 450 | 100-160 | 7.5 | 3-5 | 2880×2050×2150 | 2800×850 |
| ZSW-380×95 | 500 | 160-230 | 11 | 3-5 | 3880×2175×1957 | 3800×950 |
| ZSW-490×110 | 580 | 200-300 | 15 | 3-5 | 4957×2371×2125 | 4900×1100 |
| ZSW-590×110 | 600 | 200-300 | 22 | 3-5 | 5957×2467×2151 | 5900×1100 |
| ZSW-490×130 | 750 | 400-560 | 22 | 3-5 | 4980×3277×1525 | 4900×1300 |
| ZSW-600×130 | 750 | 400-560 | 22 | 3-5 | 6080×3277×1525 | 6000×1300 |
| ZSW-600×150 | 1000 | 500-900 | 30 | 3-5 | 6080×3541×1545 | 6000×1500 |
| ZSW-600×180 | 1200 | 700-1200 | 37 | 3-5 | 6080×3852×1770 | 6000×1800 |
| ZSW-600×200 | 1400 | 900-1800 | 45 | 3-5 | 6080×4094×1810 | 6000×2000 |
| ZSW-600×240 | 1400 | 1500-2000 | 75 | 3-5 | 6078×4511×2289 | 6000×2400 |
The equipment capacities listed are based on instantaneous sampling of medium hardness rocks.The above data is for reterence only,please contact our engineers for equipment selection for specific projects.
|
|
| MOQ: | 1 set |
| Standard Packaging: | upon request |
| Delivery Period: | 5-30 work days |
| Payment Method: | T/T |
ZSW Series Vibrating Grizzly Feeder is mainly used to feed material into the primary crusher continuously.Meanwhile,it can screen the fine material and make the crusher more powerful.
Features and Benefits
Smooth vibrating.
The special fence can prevent the block of raw material.
The distance between fences is adjustable.
Frequency conversion motor can be equipped to facilitate feeding control,and frequent startup of motor is avoided.
Technical Data
| Model |
Max Feeding Size (mm) |
Capacity (t/h) |
Motor Power(kW) |
Installation Angle(°) |
Overall Dimensions (L×W×H)(mm) |
Size of Funnel (mm) |
| ZSW-280×85 | 450 | 100-160 | 7.5 | 3-5 | 2880×2050×2150 | 2800×850 |
| ZSW-380×95 | 500 | 160-230 | 11 | 3-5 | 3880×2175×1957 | 3800×950 |
| ZSW-490×110 | 580 | 200-300 | 15 | 3-5 | 4957×2371×2125 | 4900×1100 |
| ZSW-590×110 | 600 | 200-300 | 22 | 3-5 | 5957×2467×2151 | 5900×1100 |
| ZSW-490×130 | 750 | 400-560 | 22 | 3-5 | 4980×3277×1525 | 4900×1300 |
| ZSW-600×130 | 750 | 400-560 | 22 | 3-5 | 6080×3277×1525 | 6000×1300 |
| ZSW-600×150 | 1000 | 500-900 | 30 | 3-5 | 6080×3541×1545 | 6000×1500 |
| ZSW-600×180 | 1200 | 700-1200 | 37 | 3-5 | 6080×3852×1770 | 6000×1800 |
| ZSW-600×200 | 1400 | 900-1800 | 45 | 3-5 | 6080×4094×1810 | 6000×2000 |
| ZSW-600×240 | 1400 | 1500-2000 | 75 | 3-5 | 6078×4511×2289 | 6000×2400 |
The equipment capacities listed are based on instantaneous sampling of medium hardness rocks.The above data is for reterence only,please contact our engineers for equipment selection for specific projects.
