| MOQ: | 1 set |
| Standard Packaging: | upon request |
| Delivery Period: | 5-30 work days |
| Payment Method: | T/T |

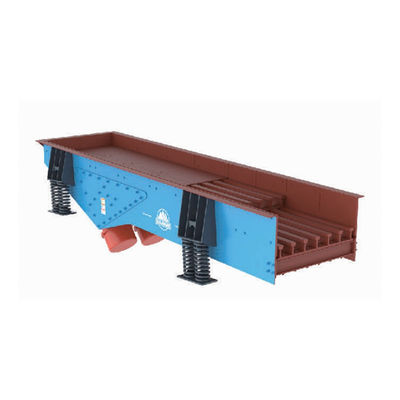

GZT Series Vibrating Feeder adopts the vibrating motor to produce vibration force.It is used to feed material into the primary crusher,meanwhile because of the bar-shaped screen,it can screen away soil contained in the raw material,increase the capacity of the primary crushing.It is suitable for feeding material into the primary crusher in hydropower field,building material and mining.
Technical Data
| Model |
Max Feeding Size (mm) |
Capacity (t/h) |
Motor Power (kW) |
BarIncination Angle (*) |
Double Amplitude (mm) |
Feed Trough (LxW) (mm) |
| GZT-0724 | 450 | 30-80 | 2x1.5 | 5 | 4-6 | 700x2400 |
| GZT-0932 | 560 | 80-150 | 2x2.2 | 5 | 4-8 | 900x3200 |
| GZT-1148 | 600 | 150-300 | 2x7.5 | 5 | 4-8 | 1100x4800 |
| GZT-1256 | 800 | 300-500 | 2x12 | 5 | 4-8 | 1200x5600 |
| 400-600 | 2x12 | 10 | ||||
| GZT-1560 | 900 | 400-600 | 2x13 | 5 | 4-8 | 1500x6000 |
| 600-800 | 2x13 | 10 | ||||
| GZT-1860 | 1000 | 500-800 | 2x14 | 5 | 4-8 | 1800x6000 |
| 1000-1200 | 2x14 | 10 | ||||
| GZT-2060 | 1200 | 900-1200 | 2x16 | 5 | 4-8 | 2000x6000 |
| 1200-1500 | 2x16 | 10 | ||||
| GZT-2460 | 1400 | 1200-1500 | 2x18 | 5 | 4-8 | 2400x6000 |
| 1500-2500 | 2x18 | 15 | ||||
| GZT-3060 | 1600 | 1500-2000 | 2x20 | 5 | 4-8 | 3000x6000 |
| 2500-3500 | 2x20 | 15 |
The equipment capacities listed are based on instantaneous sampling of medlum hardnes rocks.The above data is for reference only,please contact our engineers for equipment selection for specific projocts.
|
|
