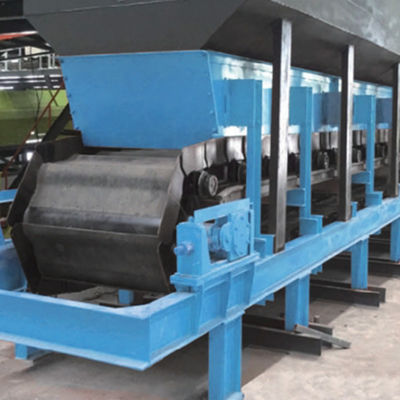

SMBW series Apron Feeder is a kind of continuous material conveying machinery.It is used under the hopper to unload large materials and feed them evenly to the crusher. It can work stably in the harsh environment of high temperature and humidity.It is suitable for cement,construction waste,domestic waste,sand making,metallurgy,mining and other industries.
Technical Data
| Model | Width (mm) |
Layout Angle(°) |
Feeding Size (mm) |
Conveying Capacity (t/h) |
| SMBW800 | 800 | 0-25 | S350 | 20-80 |
| SMBW1000 | 1000 | 0-25 | ≤400 | 20-180 |
| SMBW1200 | 1200 | 0-23 | ≤500 | 20-250 |
| SMBW1400 | 1400 | 0-23 | ≤600 | 20-400 |
| SMBW1500 | 1500 | 0-23 | s700 | 20-550 |
| SMBW1600 | 1600 | 0-23 | ≤700 | 20-700 |
| SMBW1800 | 1800 | 0-23 | ≤800 | 20-900 |
| SMBW2000 | 2000 | 0-23 | ≤800 | 20-1200 |
| Model | Width (mm) |
Layout Angle(°) |
Feeding Size (mm) |
Conveying Capacity (t/h) |
| SMBWZ1600 | 1600 | 0-23 | S800 | 40-800 |
| SMBWZ1800 | 1800 | 0-23 | ≤800 | 40-1000 |
| SMBWZ2000 | 2000 | 0-23 | ≤1000 | 40-1400 |
| SMBWZ2200 | 2200 | 0-23 | ≤1000 | 40-1800 |
| SMBWZ2300 | 2300 | 0-23 | ≤1000 | 40-2000 |
| SMBWZ2400 | 2400 | 0-23 | ≤1200 | 40-2300 |
| SMBWZ2500 | 2500 | 0-23 | ≤1500 | 40-2600 |
| SMBWZ2800 | 2800 | 0-23 | s1600 | 40-3500 |
| SMBWZ3000 | 3000 | 0-23 | ≤1800 | 40-4000 |
The equipment capacities listed are based on instantaneous sampling of medium hardness rocks.The above data is for reference only,please contact our engineers for equipment selection for specific projects.
|
|
