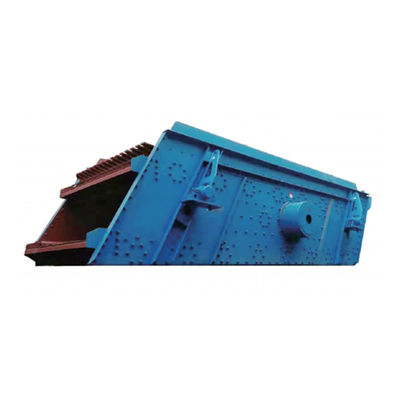

YKTH Series Heavy Feeder Screen Bar Sieve For Coarse Crushing System
  • name

YKTH Series Heavy Feeder Screen Bar Sieve For Coarse Crushing System

MOQ: 1 set
Standard Packaging: upon request
Delivery Period: 5-30 work days
Payment Method: T/T
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
HAOFENG
Advantage:
Economical And Durable
Model:
Multiple Models Are Available
Feature:
Easy To Maintain, Wear-resistant
Minimum Order Quantity:
1 set
Packaging Details:
upon request
Delivery Time:
5-30 work days
Payment Terms:
T/T
Highlight:

Heavy Feeder Screen

,

Feeder Screen Bar Sieve

,

Coarse Crushing Feeder Screen

Product Description

Introduction

The YK series heavy-duty bar sieve is suitable for use in the coarse crushing system of building aggregate processing to remove impurities.



Features

The upper layer adopts a bar structure, and the lower layer adopts a heavy-duty steel wire woven mesh, which is more suitable for the impact of large stones and more durable.
The box body is made of high-quality steel plate, and the connection is made of twisted shear bolts, making the structure more sturdy and durable.





Model



Max Feeding Size(mm)

Installation slope(° )

  Capacity(t/h)

Motor Power(kw)

(Lx Wx H) Transportation Dimensions(mm)



Weight(kg)
2YKTH1545 350 (14°) 200-400 22 5230×2200×2300 8100
2YKTH1845 400 (14°) 300-600 30 5295×2532×2403 9075
2YKTH2160 400 (20°) 500-800 37 7064×2850×1950 14250
2YKTH2460 400 (20°) 600-1200 45 7279×3270×2096 15785

Note: Capacities are relative to physical character and type of feeding, feeding size and composition and so on.
