Introduction

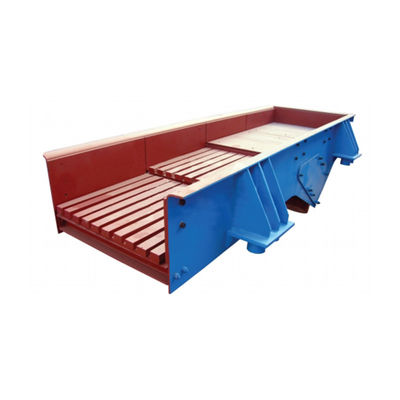

GTZ series vibrating feeder is mainly used for uniformly and continuously feeding large pieces of material before the coarse crusher. Due to the effect of the bar screen, it can remove fine materials such as soil and improve the coarse crushing capacity. Especially useful for the hydraulic power generation industry, construction industry, and feeding of various ores before coarse crushing.
Features
Simple structure and reliable operation
| Model | Max Feed Size(mm) |
Capacity(t/h) |
Motor Power(kw) |
Installation Slope(°) |
Double Amplitude(mm) |
OverallDimensions(L×W×H)(mm) |
Weight(kg) |
| GZT-0724 | 450 | 30-80 | 2×1.5 | 10 | 4-6 | 2481×1130×1037 | 1023 |
| GZT-0932 | 560 | 80-150 | 2×2.2 | 10 | 4-8 | 3298×1512×1141 | 2248 |
| GZT-0940 | 560 | 80-180 | 2×3.7 | 10 | 4-8 | 4100×1818×1134 | 3700 |
| GZT-1148 | 600 | 150-300 | 2×5.5 | 10 | 4-8 | 4926×1676×1479 | 4892 |
| GZT-1256 | 800 | 180-400 | 2×12 | 10 | 4-8 | 5704×1840×1707 | 6764 |
| GZT-1560 | 1000 | 400-600 | 2×13 | 10 | 4-8 | 6126×2208×1588 | 9185 |
Note: Capacities are relative to physical character and type of feeding, feeding size and composition and so on.
|
|
| MOQ: | 1 set |
| Standard Packaging: | upon request |
| Delivery Period: | 5-30 work days |
| Payment Method: | T/T |
Introduction
GTZ series vibrating feeder is mainly used for uniformly and continuously feeding large pieces of material before the coarse crusher. Due to the effect of the bar screen, it can remove fine materials such as soil and improve the coarse crushing capacity. Especially useful for the hydraulic power generation industry, construction industry, and feeding of various ores before coarse crushing.
Features
Simple structure and reliable operation
| Model | Max Feed Size(mm) |
Capacity(t/h) |
Motor Power(kw) |
Installation Slope(°) |
Double Amplitude(mm) |
OverallDimensions(L×W×H)(mm) |
Weight(kg) |
| GZT-0724 | 450 | 30-80 | 2×1.5 | 10 | 4-6 | 2481×1130×1037 | 1023 |
| GZT-0932 | 560 | 80-150 | 2×2.2 | 10 | 4-8 | 3298×1512×1141 | 2248 |
| GZT-0940 | 560 | 80-180 | 2×3.7 | 10 | 4-8 | 4100×1818×1134 | 3700 |
| GZT-1148 | 600 | 150-300 | 2×5.5 | 10 | 4-8 | 4926×1676×1479 | 4892 |
| GZT-1256 | 800 | 180-400 | 2×12 | 10 | 4-8 | 5704×1840×1707 | 6764 |
| GZT-1560 | 1000 | 400-600 | 2×13 | 10 | 4-8 | 6126×2208×1588 | 9185 |
Note: Capacities are relative to physical character and type of feeding, feeding size and composition and so on.
