| MOQ: | 1 set |
| Standard Packaging: | upon request |
| Delivery Period: | 5-30 work days |
| Payment Method: | T/T |
Introduction

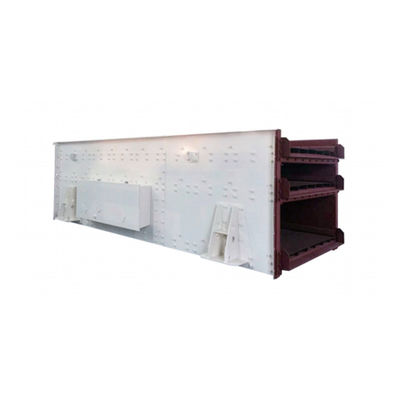

The TES series elliptical 3-axis vibrating screen is the latest product developed by absorbing similar technologies at home and abroad. It is horizontally installed and occupies very little space, and is widely used in industries such as metallurgy, building materials, and construction.etc
Features
Large capacity, high screening efficiency.
The running trajectory is elliptical, running smoothly and with low power consumption.
Dual amplitude(15-19mm).vibrating angle(30'-60°). Easy and convenient to adjust screen frequency(645-875r/min)Smooth to screen materials and not likely to plug.
| Model |
Specification(WxL)m |
Screen Area(m²) | Screen Mesh | Max Feedng Size(mm) |
Daub Ampltude(mm)
|
Vibrating Frequency (r/min) |
Capacity (t/h) |
Motor Power(kw) | Weight(t) | |
| Deck | Mesh | |||||||||
| 2TES1852 | 1.8×5.2 | 9.45 | 2 |
woven wire cloth |
150 |
14-18 |
645-875 |
120-250 | 22 | 7.6 |
| 3TES1852 | 1.8×5.2 | 9.45 | 3 | 120-250 | 30 | 8.7 | ||||
| 2TES1860 | 1.8×6.0 | 10.8 | 2 | 160-320 | 37 | 9.2 | ||||
| 3TES1860 | 1.8×6.0 | 10.8 | 3 | 160-320 | 37 | 11.2 | ||||
| 2TES2060 | 2.0×6.0 | 12 | 2 | 200-385 | 37 | 10.5 | ||||
| 3TES2060 | 2.0×6.0 | 12 | 3 | 200-385 | 45 | 12.3 | ||||
| 2TES2460 | 2.4×6.0 | 14.4 | 2 | 240-462 | 45 | 13.2 | ||||
| 3TES2460 | 2.4×6.0 | 14.4 | 3 | 240-462 | 45 | 15.1 | ||||
Note: The processing capacity listed in the table is based on dry classification of limestone, which bulk density is 1.6tm". The listed capacity is only for reference. The actual data need to be fixed by tech department according to worksite situation.
|
|
| MOQ: | 1 set |
| Standard Packaging: | upon request |
| Delivery Period: | 5-30 work days |
| Payment Method: | T/T |
Introduction
The TES series elliptical 3-axis vibrating screen is the latest product developed by absorbing similar technologies at home and abroad. It is horizontally installed and occupies very little space, and is widely used in industries such as metallurgy, building materials, and construction.etc
Features
Large capacity, high screening efficiency.
The running trajectory is elliptical, running smoothly and with low power consumption.
Dual amplitude(15-19mm).vibrating angle(30'-60°). Easy and convenient to adjust screen frequency(645-875r/min)Smooth to screen materials and not likely to plug.
| Model |
Specification(WxL)m |
Screen Area(m²) | Screen Mesh | Max Feedng Size(mm) |
Daub Ampltude(mm)
|
Vibrating Frequency (r/min) |
Capacity (t/h) |
Motor Power(kw) | Weight(t) | |
| Deck | Mesh | |||||||||
| 2TES1852 | 1.8×5.2 | 9.45 | 2 |
woven wire cloth |
150 |
14-18 |
645-875 |
120-250 | 22 | 7.6 |
| 3TES1852 | 1.8×5.2 | 9.45 | 3 | 120-250 | 30 | 8.7 | ||||
| 2TES1860 | 1.8×6.0 | 10.8 | 2 | 160-320 | 37 | 9.2 | ||||
| 3TES1860 | 1.8×6.0 | 10.8 | 3 | 160-320 | 37 | 11.2 | ||||
| 2TES2060 | 2.0×6.0 | 12 | 2 | 200-385 | 37 | 10.5 | ||||
| 3TES2060 | 2.0×6.0 | 12 | 3 | 200-385 | 45 | 12.3 | ||||
| 2TES2460 | 2.4×6.0 | 14.4 | 2 | 240-462 | 45 | 13.2 | ||||
| 3TES2460 | 2.4×6.0 | 14.4 | 3 | 240-462 | 45 | 15.1 | ||||
Note: The processing capacity listed in the table is based on dry classification of limestone, which bulk density is 1.6tm". The listed capacity is only for reference. The actual data need to be fixed by tech department according to worksite situation.
