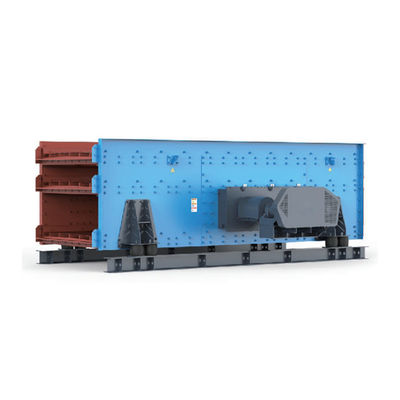

TES Series Triaxial Elliptical Vibration Screen Three Axis Large Capacity
  • name

TES Series Triaxial Elliptical Vibration Screen Three Axis Large Capacity

MOQ: 1 set
Standard Packaging: upon request
Delivery Period: 5-30 work days
Payment Method: T/T
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
HAOFENG
Advantage:
Economical And Durable
Model:
Multiple Models Are Available
Feature:
Efficient And Environmentally Friendly
Minimum Order Quantity:
1 set
Packaging Details:
upon request
Delivery Time:
5-30 work days
Payment Terms:
T/T
Highlight:

elliptical vibration screen

,

triaxial elliptical vibration screen

,

triaxial feeder screen

Product Description

TES series of three-axis elliptical screen is the advanced vibrating screen with advanced screening technology.Because of the horizontal installation,TES Series screen only occupies a small area and has been widely used in metallurgy,building materials,transportation,etc.

Features andBenefits
Large capacity,high screening efficiency.
Running track of screen is oval,Moving smoothly,Low consumption in power.
Double amplitude (15-19mm),Vibrating angle (30°-60°),Easy and convenient to adjust, screen frequency(645-875r/min).Smooth to screen materials and not likely to plug.



Technical Data



Model



Specification (W×L)(m)

Screen Area (m²)

 Screen Mesh

Max Feeding

Size(mm)

Double Amplitude

(mm)

Vibrating

Frequency (r/min)

Capacity

(t/h)

Motor Power

(kW)
       Deck  Mesh
2TES1852 1.8x5.2 9.45 2

WOven wire coth

150

 14-18

645-875

 120-250 22
3TES1852 1.8x5.2 9.45 3

WOvenwire coth

   14-18   120-250 30
2TES1860 1.8x6.0 10.8 2

WOvenwine coth

   14-18   160-320 37
3TES1860 1.8x6.0 10.8 3

woven wire doth

   14-18   160-320 37
2TES2060 2.0x6.0 12 2

wovenwire doth

   14-18   200-385 37
3TES2060 2.0x6.0 12 3

woven wire cloth

   14-18   200-385 45
2TES2460 2.4x6.0 14.4 2

woven wire doth

   14-18   240-462 45
3TES2460 2.4x6.0 14.4 3

woven wire doth

   14-18   240-462 45



The equipment capacities listed are based on instantaneous sampling of medium hardness rocks.The above data is for reference only,please contact our engineers for equipment selection for specific projects.
