| MOQ: | 1 set |
| Standard Packaging: | upon request |
| Delivery Period: | 5-30 work days |
| Payment Method: | T/T |

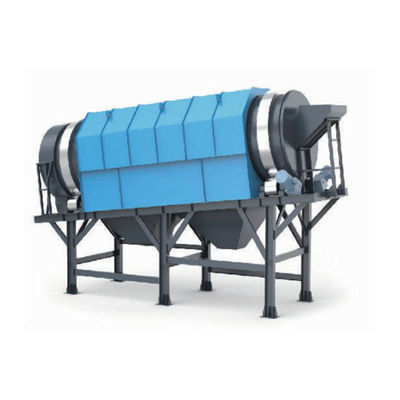

As one of the main sorting machine,trommel screen can effectively separate MSW,organic waste,recyclable waste,stale waste and kitchen waste by different drum screen sizes to optimize the material for the subsequent processing.The trommel screen can clean it self while working as it rotates,which maximize the separating efficiency and lessen the main tenance work.The high efficiency and the high quality will highly profit you ina long run time.
Features and Benefits
Quick maintenance check due to a window installed on the maintenance door.
Minimum maintenance work due to anti-winding design.
Efficient operation with electrical drive.
Save space due to compact construction design
Optional frequency converter.
Technical Data
|
Drum Diameter Size |
φ0.8-φ3(m)(Can be Customized) |
| Drum Length | 3-12(m) |
|
Drive Unit |
Gear Motor 7.5-74 (kW) |
|
Drum Speed |
10-23(r/min) |
|
|
|
|
Voltage |
3×380V±5%/50Hz |
|
Control Cabinet |
Detached (Can be Integrated) |
|
Power Control |
Frequency Converter |
|
Screen Unit |
φ5-φ350(mm)(Can be Customized) |
|
Input Size |
≤1000(mm) |
|
Throughput Capacity |
10-150(m³/h) |
|
Screening Rate |
80%-95% |
The equipment capacities listed are based on instantaneous sampling of medum hardness rocks.The above data is fo reference only,please contact our engineers for equipment selection for specific projects.
|
|
| MOQ: | 1 set |
| Standard Packaging: | upon request |
| Delivery Period: | 5-30 work days |
| Payment Method: | T/T |
As one of the main sorting machine,trommel screen can effectively separate MSW,organic waste,recyclable waste,stale waste and kitchen waste by different drum screen sizes to optimize the material for the subsequent processing.The trommel screen can clean it self while working as it rotates,which maximize the separating efficiency and lessen the main tenance work.The high efficiency and the high quality will highly profit you ina long run time.
Features and Benefits
Quick maintenance check due to a window installed on the maintenance door.
Minimum maintenance work due to anti-winding design.
Efficient operation with electrical drive.
Save space due to compact construction design
Optional frequency converter.
Technical Data
|
Drum Diameter Size |
φ0.8-φ3(m)(Can be Customized) |
| Drum Length | 3-12(m) |
|
Drive Unit |
Gear Motor 7.5-74 (kW) |
|
Drum Speed |
10-23(r/min) |
|
|
|
|
Voltage |
3×380V±5%/50Hz |
|
Control Cabinet |
Detached (Can be Integrated) |
|
Power Control |
Frequency Converter |
|
Screen Unit |
φ5-φ350(mm)(Can be Customized) |
|
Input Size |
≤1000(mm) |
|
Throughput Capacity |
10-150(m³/h) |
|
Screening Rate |
80%-95% |
The equipment capacities listed are based on instantaneous sampling of medum hardness rocks.The above data is fo reference only,please contact our engineers for equipment selection for specific projects.
