| MOQ: | 1 set |
| Standard Packaging: | upon request |
| Delivery Period: | 5-30 work days |
| Payment Method: | T/T |

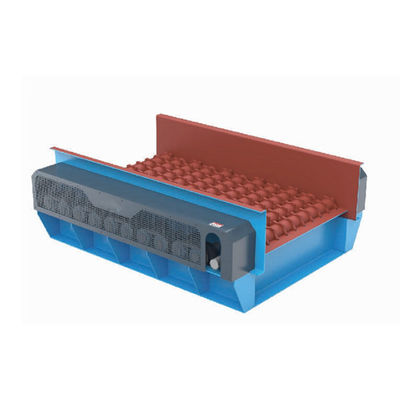

SMWG Series Roller Screen is specially designed for continuous feeding to heavy duty crusher.It is a compound equipment with both feeding and screening functions.It removes mud of raw materials to reduce the burden and avoid jam, it can effectively improve production efficiency and reduce energy consumption.
Features andBenefits
After screening out the fine material and soil in the raw material which have met the requirements,the crushing capacity is improved with less wear of crusher and reliable performance.
The feeding capacity could be adjusted automatically according to the load of the crusher and working efficiency could be improved.
It is especially suitable for screening out of bulk material.Thereis a mud brush device under the screening roller,which is also suitable for moistened materials.
It has dual functions,occupies little space and does not increase the cost of equipment purchase.It is suitable for the crushing of silicon aluminum ore.
|
Model |
Max Feeding Size(mm) |
Discharge Range(mm) |
Width(mm) |
Length (mm) |
Capacity (th) |
| SMWG1238 | ≤600 | ≤50-80 | 1236 | 3650 | 150-350 |
| SMWG1252 | ≤600 | ≤50-80 | 1236 | 5160 | 150-350 |
| SMWG1538 | ≤800 | ≤50-80 | 1526 | 3650 | 350-450 |
| SMWG1552 | ≤800 | ≤50-80 | 1526 | 5160 | 350-450 |
| SMWG1852 | ≤1000 | ≤50-80 | 1826 | 5160 | 500-900 |
| SMWG2424 | ≤1250 | ≤50-80 | 2400 | 2400 | 1000-1400 |
The equipment capacities listed are based on instantaneous sampling of medium hardness rocks.The above data is for reference only,please contact our engineers for equipment selection for specific projects.
|
|
| MOQ: | 1 set |
| Standard Packaging: | upon request |
| Delivery Period: | 5-30 work days |
| Payment Method: | T/T |
SMWG Series Roller Screen is specially designed for continuous feeding to heavy duty crusher.It is a compound equipment with both feeding and screening functions.It removes mud of raw materials to reduce the burden and avoid jam, it can effectively improve production efficiency and reduce energy consumption.
Features andBenefits
After screening out the fine material and soil in the raw material which have met the requirements,the crushing capacity is improved with less wear of crusher and reliable performance.
The feeding capacity could be adjusted automatically according to the load of the crusher and working efficiency could be improved.
It is especially suitable for screening out of bulk material.Thereis a mud brush device under the screening roller,which is also suitable for moistened materials.
It has dual functions,occupies little space and does not increase the cost of equipment purchase.It is suitable for the crushing of silicon aluminum ore.
|
Model |
Max Feeding Size(mm) |
Discharge Range(mm) |
Width(mm) |
Length (mm) |
Capacity (th) |
| SMWG1238 | ≤600 | ≤50-80 | 1236 | 3650 | 150-350 |
| SMWG1252 | ≤600 | ≤50-80 | 1236 | 5160 | 150-350 |
| SMWG1538 | ≤800 | ≤50-80 | 1526 | 3650 | 350-450 |
| SMWG1552 | ≤800 | ≤50-80 | 1526 | 5160 | 350-450 |
| SMWG1852 | ≤1000 | ≤50-80 | 1826 | 5160 | 500-900 |
| SMWG2424 | ≤1250 | ≤50-80 | 2400 | 2400 | 1000-1400 |
The equipment capacities listed are based on instantaneous sampling of medium hardness rocks.The above data is for reference only,please contact our engineers for equipment selection for specific projects.
